Setup

Maintain Supplier

To maintain the supplier profile data such as addresses, phone numbers, fax, email, contact persons, credit limits, credit terms, etc. In other words, it is your supplier contacts list.

New Supplier

To create NEW supplier, CLICK on NEW button. See screenshot below.

You will get a blank form to be filled in with the supplier data.

You may start input the following fields:

Field Name	Field Type	Length	Explanation
Company	Alphanumerical	100	Input the supplier billing company name.
Description 2 (under Company)	Alphanumerical	100	An optional field where you can enter Chinese translated name, former company name, company register no, etc.
Control A/c	Lookup from Maintain Accounts (Special Type: Supplier Control Account)	10	Select an appropriate Supplier Control Account to be posted to GL when supplier documents are created.
Code	Alphanumerical	10	AUTO/MANUAL generate the Supplier Code.
Cust Category	Lookup from Maintain Company Category	15	Categorize your supplier for reporting purpose.

General

Field Name	Field Type	Length	Explanation
Branch Name	Alphanumerical	100	You may maintain multiple sets of addresses by differentiating the Branch Name Default Branch Name: BILLING
Address (4 lines)	Alphanumerical	40 (each line)	Input the company addresses.
Attention	Alphanumerical	70	Input the contact person.
Phone 1 & 2	Alphanumerical	30	Input the telephone number.
Fax 1 & 2	Alphanumerical	30	Input the fax number.
Email	Alphanumerical	60	Input the email.
Area	Lookup from Maintain Area	10	Select a default Area.
Agent	Lookup from Maintain Agent	10	Select a default Agent.
Currency	Lookup from Maintain Currency	6	Select a default Currency.
Credit Terms	Lookup from Maintain Terms	10	Select a default Terms.
Credit Limit	Numeric	—	Set the credit limit.
Statement	Option	—	Select a default statement type, e.g., Open Item or Brought Forward. Default: Open Item
Aging On	Option	—	Select a default Aging type, e.g., Invoice Date or Due Date. Default: Invoice Date
Price Tag	Lookup from Maintain Stock Price Tag	10	Set the price tag to the items.

Note

Field Name	Field Type	Length	Explanation
Account Open Date	Date	—	Creation date.
Remark	Alphanumerical	80	This remark will show in Inquiry → Account Inquiry.
Biz Nature	Alphanumerical	100	Input supplier business nature. For example, Chemical Manufacturing, Car Service, etc.
Note	Alphanumerical	Rich Text	Record the supplier knowledge base. You can use the "Date Stamp".
Status	Option	—	See Status Options table below.

Status	Explanation
Active	Allow to create official documents and select to print Supplier Statement.
Inactive	Not allow to create official documents, but cannot select to print Supplier Statement.
Suspend	Not allow to create official documents, but can select to print Supplier Statement.
Prospect	Allow to create official documents and select to print Supplier Statement.
Pending	Allow to create official documents and select to print Supplier Statement.

Tax

Field Name	Explanation & Properties
Default Tax	Select a default tax code based on supplier.
Tax Area	Not applicable to Malaysia/Singapore.
Exemption No	• Input the Tax Exemption number applicable to your supplier.
	• Field type: Alphanumerical.
	• Length: 50
Expiry Date	Set an expiry date.
	• This will be tax exempted before the expiry date.
	• Field type: Date.

Tariff Code Setting This setting set the supplier who has supply the taxable goods under the Sales Tax (Person Exempted from Payment of Tax) Order 2018.

Field Name	Explanation & Properties
Tariff	• Add tariff code of taxable goods to be sold in exemption.
	• Lookup: Maintain Tariff
	• Related Topic: Maintain Stock Item → Main Header
Tax	• Select an appropriate tax code that falls under the Person Exempted in Schedule C ONLY (must be declared in SST-02).
	• Schedule C tax code: PEC1, PEC2, PEC3, PEC4, PEC5
	• Lookup: Maintain Tax

Bank Account

Field Name	Explanation & Properties
Bank	Select the correct bank.
Account No	Key in the account number of the supplier.
Account Name	Insert the name.
ID Type	Select the ID type that you want.
ID	Insert the ID.
Active	• Tick it when active.
	• Untick when inactive.

Edit Supplier

You can EDIT the supplier, CLICK on EDIT button. See screenshot below.

note

1. Users are able to EDIT the supplier data depends on the user access rights granted.
2. Any EDITING the system will be audited (logged) with changes made.

Save Supplier

You have to SAVE the supplier data before can be used. See screenshot below.

Delete Supplier

You can DELETE the unwanted supplier data. See screenshot below.

note

1. User able to DELETE the supplier data depends on the user access rights granted.

Supplier Code Format

Supplier code can be AUTO generate or overwrite it manually. See screenshot below.

Important

1. Every supplier code is unique.
2. If the system found there is a duplicate code trying to save, users will be notified with a warning message.

You can set the supplier code format via Tools | Options...(Supplier). See screenshot below.

Explanation of the Supplier Code Format:

For example,

Company Name	Customer Control Acc	Format	Result
ABCD SDN BHD	401-000	%.1s-%.1s%.1d	4-A-1
ABCD SDN BHD	401-000	%.2s-%.2s%.2d	40-AB-01
ABCD SDN BHD	401-000	%.3s-%.3s%.3d	401-ABC-001
ABCD SDN BHD	401-000	%.4s-%.4s%.4d	401--ABCD-0001

Supplier Invoice (SI)

• General invoice received from suppliers likes purchase of service, insurance, stationery or any non-stock control billing.
• Besides that, you can check the invoices status such as outstanding and payment history.

Basic Entry (SI)

1. Click on New button.

2. See the New Supplier Invoice entry form screenshot below.



3. Select the Supplier Code. You direct key in and search by either supplier code or name.

4. Input the Purchase A/c and amount to be debit.

5. Below is the example of the entry created:



   Account	DR (RM)	CR (RM)
   Stationery	500.00
   Supplier Control Account		500.00

Project (SI)

• There are 2 types of project you need to be take note.
  1. Document Project
  2. Detail Project
• For document project, you need to point to More section (on the left side bar).
• For detail project, you have to insert the project column out from Field Chooser.

Label	Types	Explanation
A	Document Project	It represents the project for a document to be credited.
B	Detail Project	It represents the project for individual GL Account to be debited.

Attachment (SI)

• It is very useful to attach any supporting documents to an invoice.
• In future, you are able to retrieve and refer the attachment file easily.

1. You have to point to the attachment section.
2. Click on ( + ) button to insert the filename path.
3. See the sample screenshot below.

Note (SI)

1. Click on the Note section (on the LEFT side bar).

2. RIGHT click it, you will see the Rich Text Editor pop-up.

3. You can start key-in the note. See the example screenshot below.

4. Click on X button to save and exit the Rich Text Editor.



5. You will get prompted the Save changes? message. Click YES to save it.



Invoice description (SI)

1. To show the document description in Supplier Statement, e.g., Purchase-Stationery April 2015.



2. Sample of supplier statement screenshot below.



Supplier Payment (SP)

• To record the payment amount to Suppliers.
• To off-set against the outstanding supplier invoices.

Basic Entry (SP)

1. Click on New button.

2. See the New Supplier Payment entry form screenshot below.



3. Select the Supplier Code. Direct key in and search by either Supplier code or name.

4. Select the Payment Method (bank or cash account) in Payment By.

5. Enter the Paid Amount (follow the bank account currency).

6. Below is the example of the entry created:



   Double Entry will be:-

   Account	DR (RM)	CR (RM)
   Supplier Control Acc	2,500.00
   Bank Account		2,500.00

7. Enter Bank Charges if there is a bank charges.



8. It will auto post the following double entry:-

   Account	DR (RM)	CR (RM)
   Bank Charges	2.00
   Bank Account		2.00

9. Enter the cheque number, cash or TT into Cheque No. field.



Knock-Off (SP)

Purpose to knock-off the invoices:

1. To show the outstanding invoices in Supplier Aging Report.
2. To indicate the payment knock-off the invoices in Supplier Statement.
3. To remove / recover from the GST Bad Debt Relief on outstanding more than 6 months

Partial Knock-Off (SP)

1. You can enter the knock-off amount into Pay column (auto tick).

2. Unapplied Amt will be reduced by the knock-off amount entered.



Document Knock-Off (SP)

1. You can tick on the outstanding documents.

2. Unapplied Amt will be reduced by the knock-off amount ticked.



Random Knock-Off (SP)

1. You can click on the Pay column. It will auto tick on the outstanding documents.

2. Unapplied Amt will be reduced according to the outstanding balance.



note

Unapplied amount shows the Supplier payment amount not allocated/knock-off against any outstanding invoices and debit note.

Attachment (SP)

• It is very useful to attach any supporting documents.
• In future, you are able to retrieve and refer the attachment file easily.

1. You have to point to the attachment section.

2. Click on ( + ) button to insert the filename path.

3. See the sample screenshot below.



Note (SP)

1. Click on the Note section (on the LEFT side bar).

2. RIGHT click it, you will see the Rich Text Editor pop-up.



3. You can start key-in the note. See the example screenshot below.

4. Click on X button to save and exit the Rich Text Editor.



5. You will get prompted the Save changes? message. Click YES to save it.



Description (SP)

To show the Supplier payment description in the Supplier Statement, e.g., Payment For Jan & Feb 2016.

Sample of Supplier statement screenshot below.

Supplier Debit Note (SDN)

• General debit note received from Supplier likes the adjustment for undercharged to purchase of stationery, services, insurance, or any non-stock control billing.
• Besides that, you can check the debit note status such as outstanding and payment history.

Basic Entry (SDN)

1. Click on New button.

2. See the New Supplier Debit Note entry form screenshot below.



3. Select the Supplier Code. You direct key in and search by either supplier code or name.

4. Input the Purchase A/c and amount to be debit.

5. Below is the example of the entry created:



   Double Entry will be:-

   Account	DR (RM)	CR (RM)
   Stationery	500.00
   Supplier Control Account		500.00

Project (SDN)

• There are 2 types of project you need to be take note.
  1. Document Project
  2. Detail Project
• For document project, you need to point to More section (on the left side bar).
• For detail project, you have to insert the project column out from Field Chooser.

Label	Types	Explanation
A	Document Project	It represents the project for a document to be credited.
B	Detail Project	It represents the project for individual GL Account to be debited.

Attachment (SDN)

• It is very useful to attach any supporting documents to a debit note.
• In future, you are able to retrieve and refer the attachment file easily.

1. You have to point to the attachment section.

2. Click on ( + ) button to insert the filename path.

3. See the sample screenshot below.



Note (SDN)

1. Click on the Note section (on the LEFT side bar).

2. RIGHT click it, you will see the Rich Text Editor pop-up.

3. You can start key-in the note. See the example screenshot below.

4. Click on X button to save and exit the Rich Text Editor.

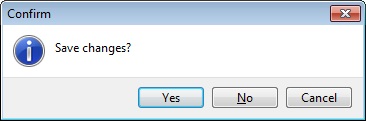

5. You will get prompted the Save changes? message. Click YES to save it.



D/N Description (SDN)

1. To show the document description in Supplier Statement, e.g., Undercharged-Stationery April 2015.



2. Sample of supplier statement screenshot below.



Supplier Credit Note (SCN)

• Credit note is used to reduce and offset the outstanding invoices or debit note.
• For those Credit Note created from Purchase module, you are required to offset against the outstanding invoices/debit note here.
• You can check any unapplied amount for a credit note. Unapplied amount meaning the credit note amount must find the invoice / debit note to knock-off.

Basic Entry (SCN)

1. Click on New button.

2. See the New Supplier Credit Note entry form screenshot below.



3. Select the Supplier Code. You direct key in and search by either supplier code or name.

4. Input the Purchase A/c and amount to be credit.

5. Below is the example of the entry created:



   Double Entry will be:-

   Account	DR (RM)	CR (RM)
   Supplier Control Acc	500.00
   Purchase Returns		500.00

Unapplied Amount (SCN)

• Unapplied amount shows the credit note amount not allocated/knock-off against any outstanding invoices and debit note.
• It will remains in supplier aging report show as negative amount (-).

Knock-Off Outstanding (SCN)

• To knock-off the outstanding invoice/debit note, TICK the checkbox beside the pay column.
• You can direct input the pay amount into pay column.

Project (SCN)

• There are 2 types of project you need to be take note.
  1. Document Project
  2. Detail Project
• For document project, you need to point to More section (on the left side bar).
• For detail project, you have to insert the project column out from Field Chooser.

Label	Types	Explanation
A	Document Project	It represents the project for a document to be debited.
B	Detail Project	It represents the project for individual GL Account to be credited.

Attachment (SCN)

• It is very useful to attach any supporting documents to a credit note.
• In future, you are able to retrieve and refer the attachment file easily.

1. You have to point to the attachment section.

2. Click on ( + ) button to insert the filename path.

3. See the sample screenshot below.



Note (SCN)

1. Click on the Note section (on the LEFT side bar).

2. RIGHT click it, you will see the Rich Text Editor pop-up.

3. You can start key-in the note. See the example screenshot below.

4. Click on X button to save and exit the Rich Text Editor.



5. You will get prompted the Save changes? message. Click YES to save it.



C/N Description (SCN)

1. To show the document description in Supplier Statement, e.g., Overcharged-Stationery April 2015.



2. Sample of supplier statement screenshot below.



Foreign Exchange Currency Gain/Loss (SCN)

• Difference in the foreign currency exchange rate will AUTO post the FOREX Gain/Loss entry into GL.
• Posting date can be changed to reflect the FOREX Gain/Loss for a month.

Supplier Refund (SR)

• To receive the refund for the amount over paid to supplier.
• To off-set against the unapplied amount for Supplier Payment and Credit Note.

Basic Entry (SR)

1. Click on New button.

2. See the New Supplier Refund entry form screenshot below.



3. Select the Supplier Code. Direct key in and search by either Supplier code or name.

4. Select the Payment Method (bank or cash account) in Received In.

5. Enter the Refund Amount (follow the bank account currency).

6. Below is the example of the entry created:



   Double Entry will be:-

   Account	DR (RM)	CR (RM)
   Bank Acc	3,590.00
   Supplier Control Acc		3,590.00

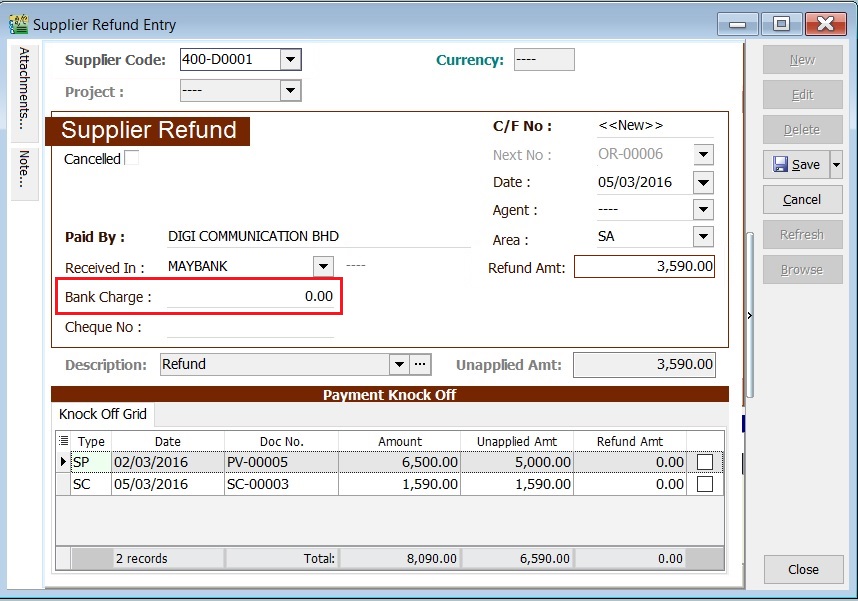

7. Enter Bank Charges if there is a bank charges.



8. Let's say the bank charges = RM2.00; therefore, the double entry posting will be:-

   Account	DR (RM)	CR (RM)
   Bank Charges	2.00
   Bank Account		2.00

9. Enter the cheque number, cash or TT into Cheque No. field.



Knock-off (SR)

Purpose to knock-off the invoices:

1. To show the outstanding invoices in Supplier Aging Report.
2. To indicate the payment knock-off the invoices in Supplier Statement.

Partial Knock-Off (SR)

1. You can enter the knock-off amount into Pay column (auto tick).

2. Unapplied Amt will be reduced by the knock-off amount entered.



Document Knock-Off (SR)

1. You can tick on the outstanding documents.

2. Unapplied Amt will be reduced by the knock-off amount ticked.



Random Knock 0ff (SR)

1. You can click on the Pay column. It will auto tick on the outstanding documents.

2. Unapplied Amt will be reduced according to the outstanding balance.



   note

   Refund Unapplied amount shows the supplier refund amount not allocated/knock-off against any unapplied amount in supplier payment and credit note.

Attachment (SR)

• It is very useful to attach any supporting documents.
• In future, you are able to retrieve and refer the attachment file easily.

1. You have to point to the attachment section.

2. Click on ( + ) button to insert the filename path.

3. See the sample screenshot below.



Note (SR)

1. Click on the Note section (on the LEFT side bar).

2. RIGHT click it, you will see the Rich Text Editor pop-up.



3. You can start key-in the note. See the example screenshot below.

4. Click on X button to save and exit the Rich Text Editor.



5. You will get prompted the Save changes? message. Click YES to save it.



Description (SR)

To show the supplier refund description in the Supplier Statement, e.g., Refund For SC-00002 & PV-00004..

Sample of supplier statement screenshot below.

Supplier Contra (SC)

• To make settlement of the outstanding between both supplier and customer accounts without any monetary transactions.
• It will use an intermediate accounts known as Contra Account. This account balance must be ZERO.

Basic Entry (SC)

Assume that you have created the Customer Contra. You will found the same contra no. appeared in the Supplier Contra.

1. Highlight the Contra No to edit. Click on Edit button.

2. See the Supplier Contra entry from screenshot below.



3. Select the Supplier Code. Direct key in and search by either supplier code or name.

4. Enter the Contra Amount (follow the supplier currency).

5. Below is the example of the entry created:



   Double Entry will be:-

   Account	DR (RM)	CR (RM)
   Supplier Control Acc	1,500.00
   Contra Acc		1,500.00

TIPS

To ensure the contra account has set properly. Contra Account

Knock-off (SC)

Purpose to knock-off the invoices:

1. To show the outstanding invoices in Supplier Aging Report.
2. To indicate the contra knock-off the invoices in Supplier Statement.

Partial Knock-Off (SC)

1. You can enter the knock-off amount into Pay column (auto tick).

2. Unapplied Amt will be reduced by the knock-off amount entered.



Document Knock-Off (SC)

1. You can tick on the outstanding documents.

2. Unapplied Amt will be reduced by the knock-off amount ticked.



Random Knock-Off (SC)

1. You can click on the Pay column. It will auto tick on the outstanding documents.

2. Unapplied Amt will be reduced according to the outstanding balance.



   note

   Refund unapplied amount shows the supplier contra amount not allocated/knock-off against any outstanding supplier invoices and debit note.

Attachment (SC)

• It is very useful to attach any supporting documents.
• In future, you are able to retrieve and refer the attachment file easily.

1. You have to point to the attachment section.

2. Click on ( + ) button to insert the filename path.

3. See the sample screenshot below.



Note (SC)

1. Click on the Note section (on the LEFT side bar).

2. RIGHT click it, you will see the Rich Text Editor pop-up.



3. You can start key-in the note. See the example screenshot below.

4. Click on X button to save and exit the Rich Text Editor.



5. You will get prompted the Save changes? message. Click YES to save it.



Description (SC)

To show the supplier contra description in the Supplier Statement, e.g., Contra IV-00005 .

Sample of supplier statement screenshot below.

GL Ledger - Contra Account

1. Select the date range.

2. Select the account code, e.g., 450-000 CONTRA ACCOUNT.

3. Tick on General Ledger.

4. Click Apply button.

5. Example of the Contra Account ledger as shown below.



InterBank GIRO Module

To use the Interbank GIRO feature, you must have the Interbank GIRO module enabled in SQL Account.

Bank File Format

The following shows the list of bank file formats that are currently supported.

Payment Method

1. Click the Bank Info button.



2. Choose a bank.



3. Click the OK button.



4. The bank you have chosen may have more than one file format, please ensure you have selected the correct file format.



5. Enter the bank information, click the OK button, then Save.



Supplier Bank Account

1. Add a bank account, then Save.



Supplier Payment Method

1. Select Supplier Bank from the drop-down list.



2. Choose the payment method that contains bank information, then Save.



Print Supplier Document (Interbank GIRO) Listing

1. Click the GIRO button.



2. Enter additional information, then click the Save button.



3. You can now upload the bank instruction file to the bank host.

Excel Format

By default, the system automatically saves an Excel file in XLSX format. Some banks (Alliance Bank, Public Bank, RHB) require the bank instruction file in XLS format. First, you must have Microsoft Excel 2007 or a version above installed on your machine.

Then, open the Excel file and save it as XLS format.
