Settings

The Settings module is organised into five sections for configuring X-Pos Terminal

Section	Description
General	Configure payment behaviour, POS screen options, and counter-closing controls
Hardware	Configure USB backup, receipt printer, barcode scanner, customer display, and weight scale
Advanced	Configure local synchronisation, SQL Account posting, bill-number formats, report templates, and database maintenance
Shortcuts Configuration	Assign keyboard shortcuts for title commands, action buttons, and payment methods
About	Maintain company and location information

note

Select a section from the left menu, then select the required setting card. Use Apply to save changes

• Some setting pages are read-only, as their values are synced from metadata
• Some setting pages can be edited locally, and changes are saved directly on the terminal
• Some setting pages can be edited locally, but clicking Restore Default will revert the values back to those synced from metadata, discarding any local changes

General

Payment

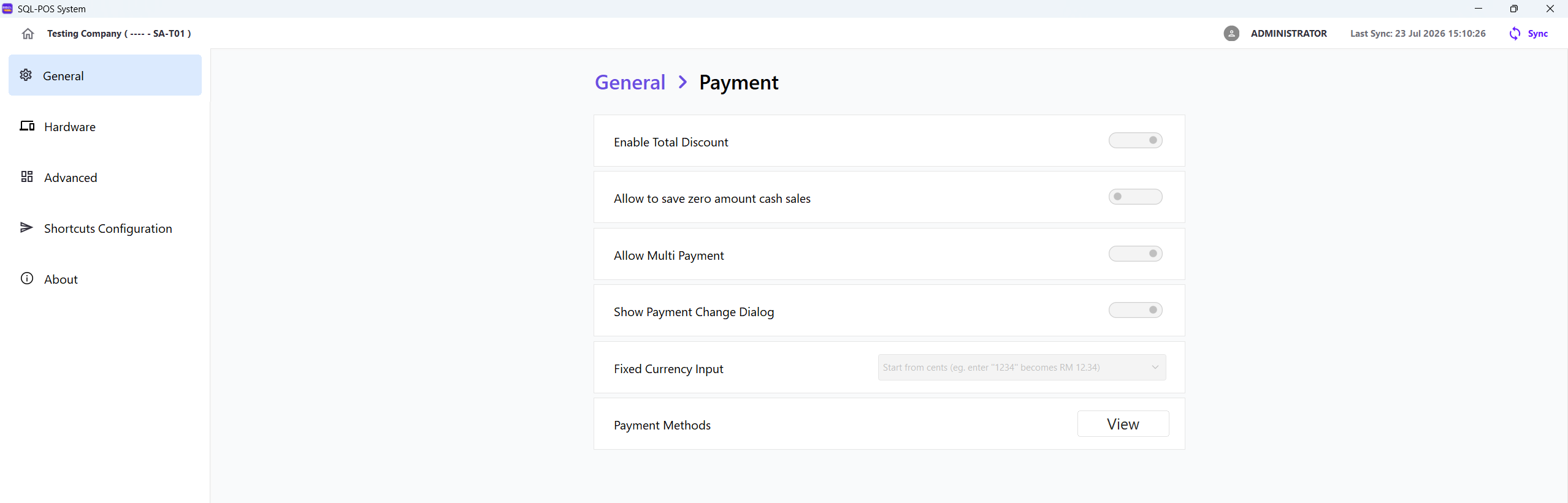

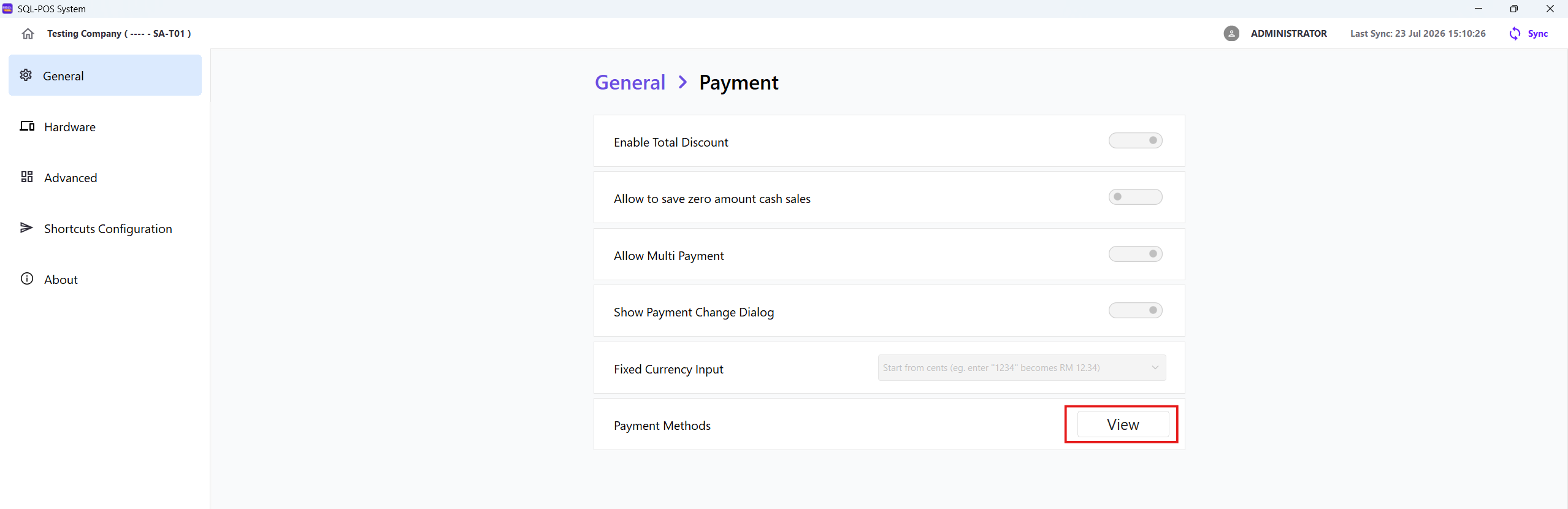

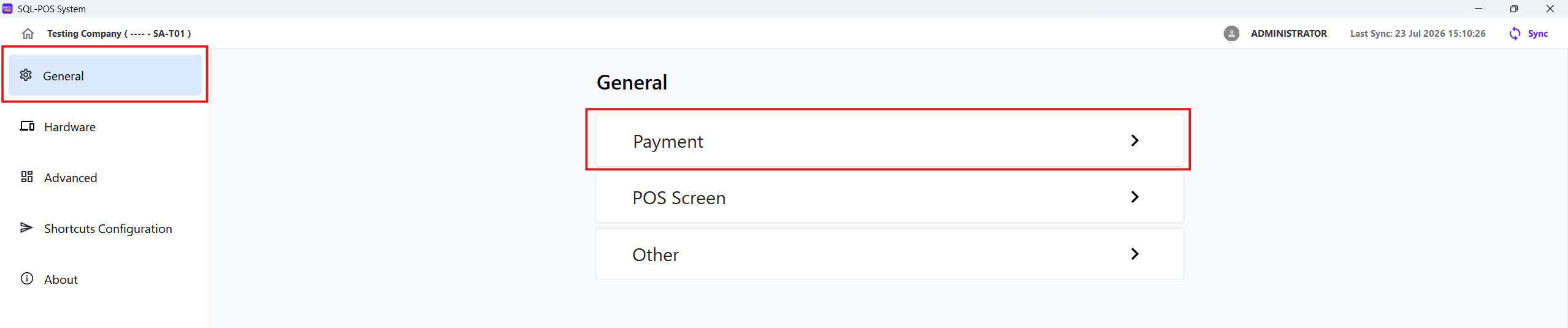

Click General → Payment

These settings are identical to the options described in X-Pos Guide - Payment

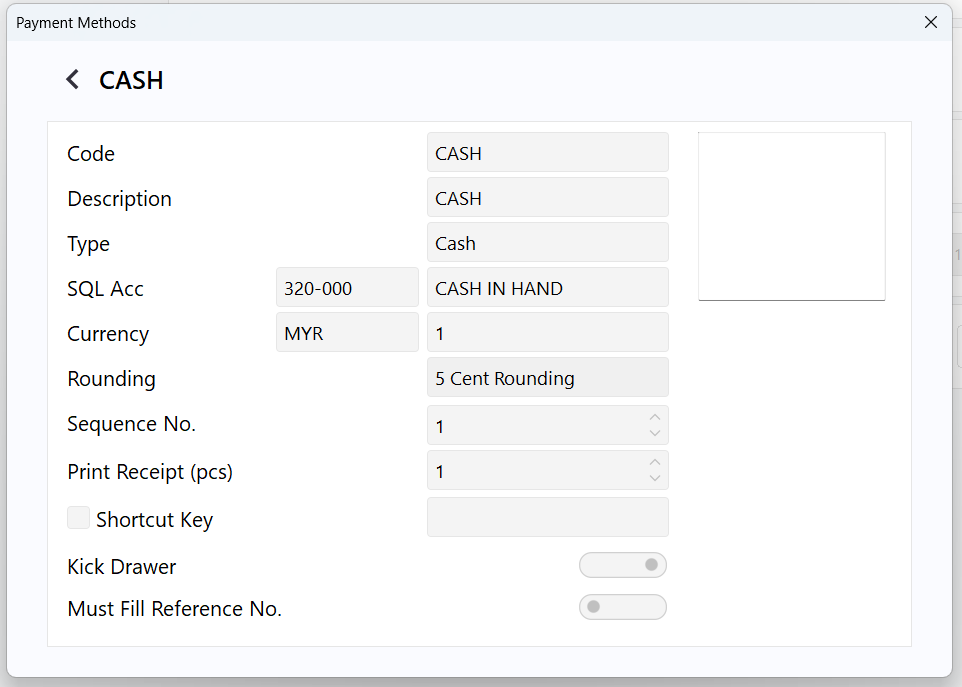

View Payment Methods

1. Click Payment Methods → View

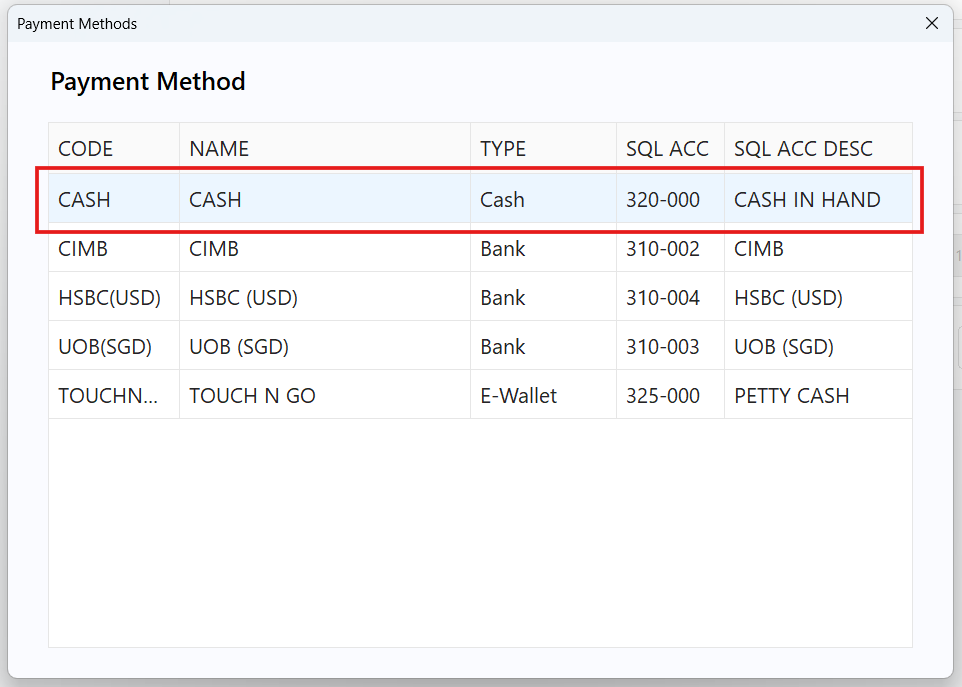

2. Select a payment method from the list



3. View payment method details

   For details on payment method fields, please refer to the X-Pos Guide - POS Payment Options



POS Screen

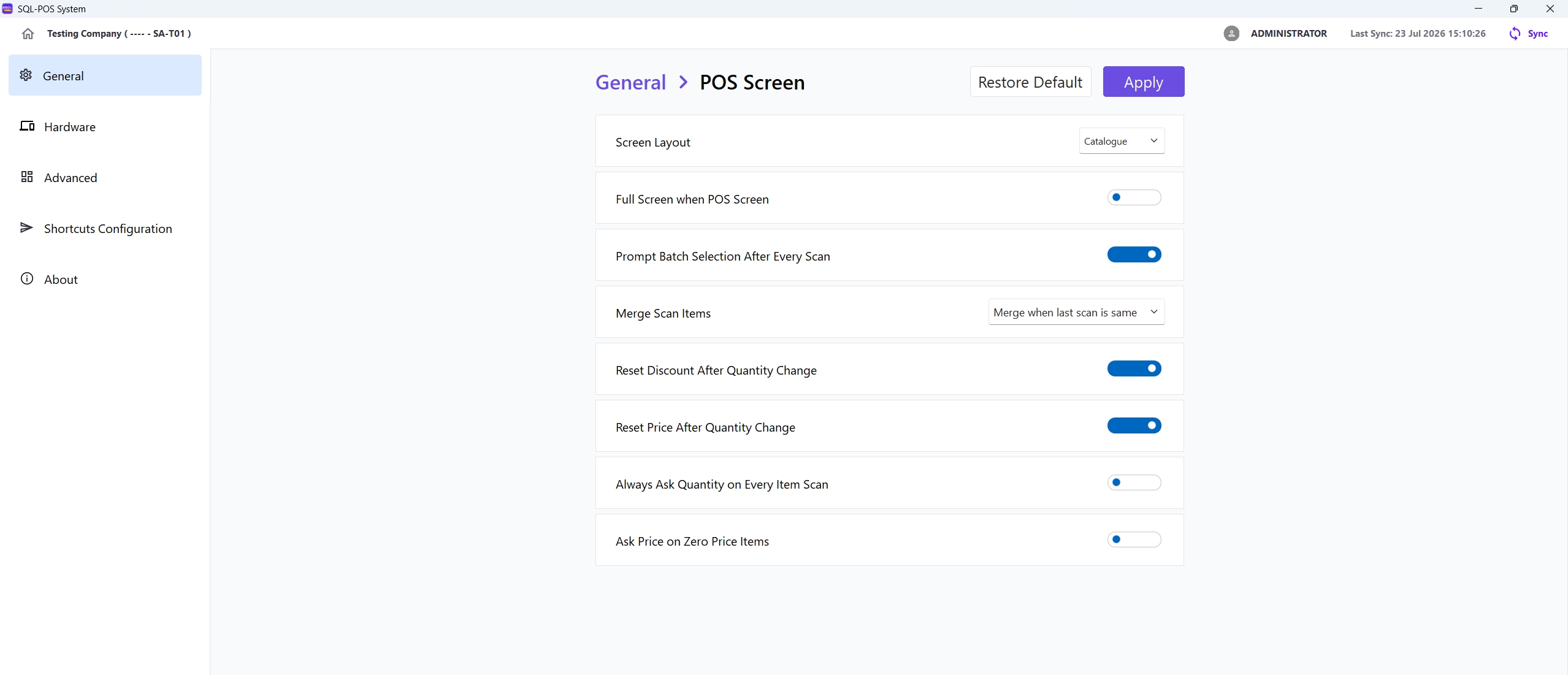

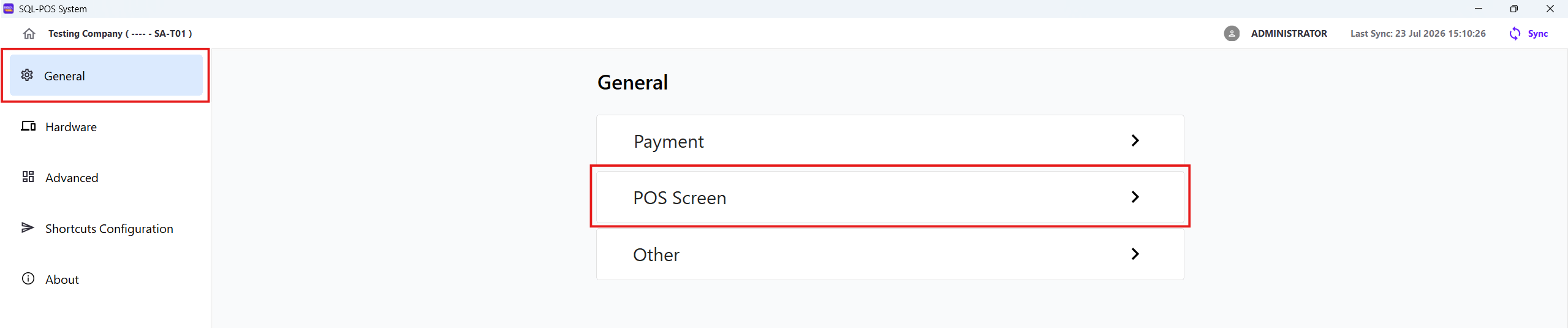

Click General → POS Screen

These settings are identical to the options described in X-Pos Guide - POS Screen

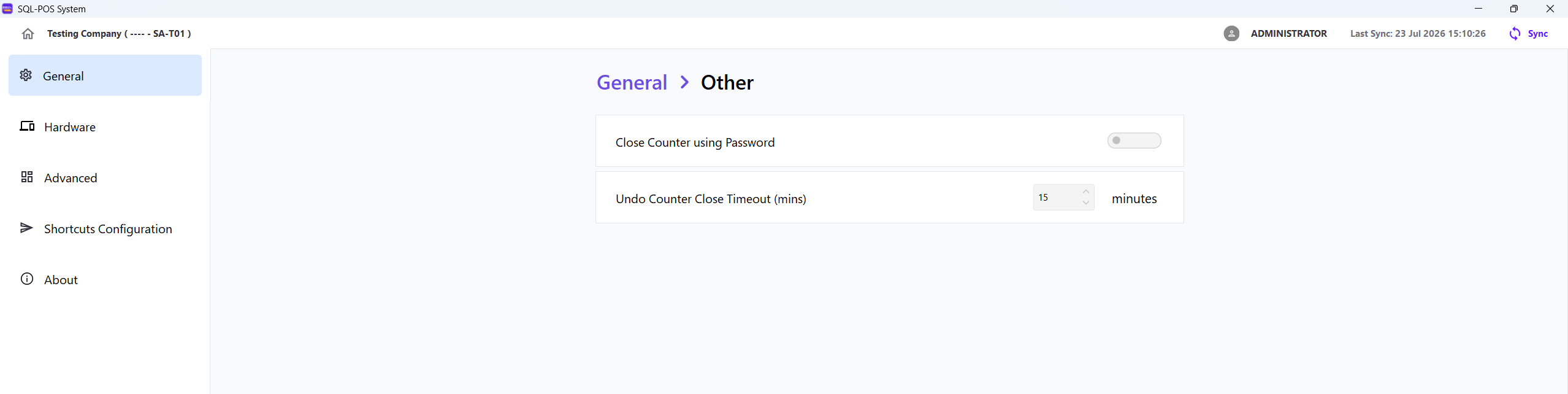

Other

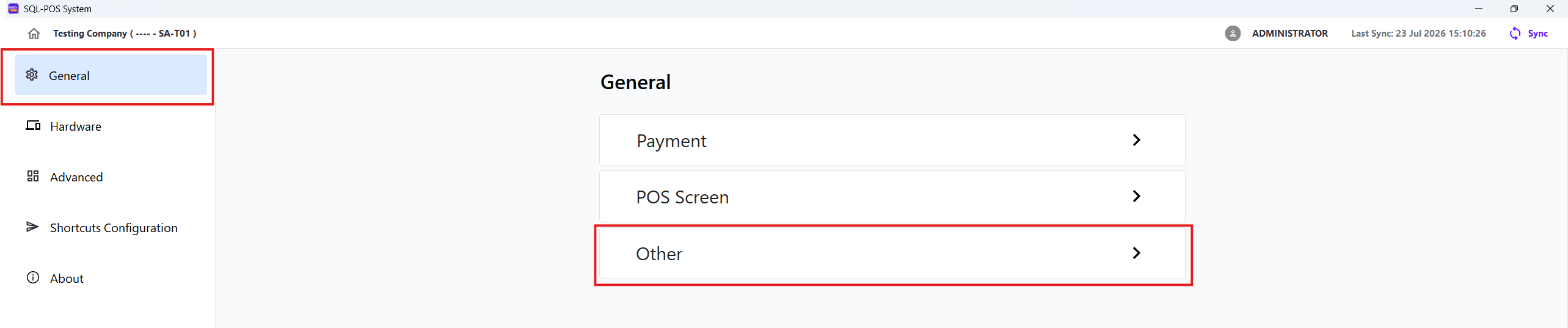

Click General → Other

These settings are identical to the options described in X-Pos Guide - Other

Hardware

USB

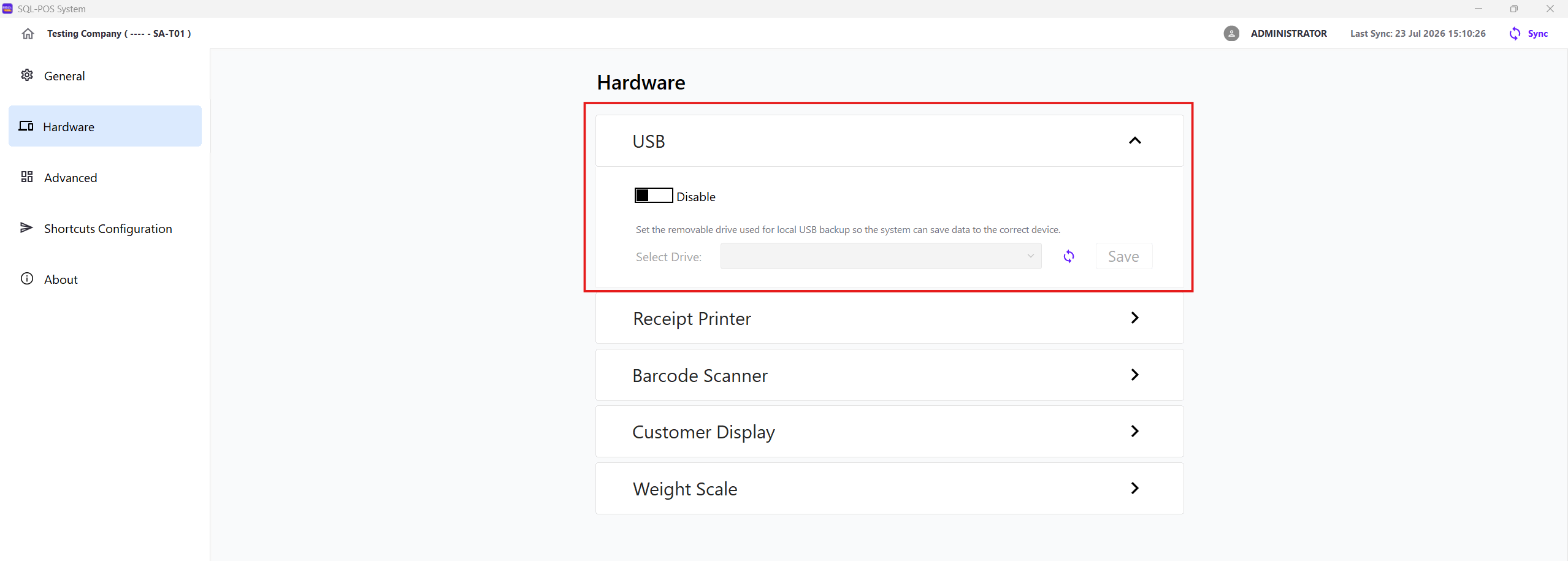

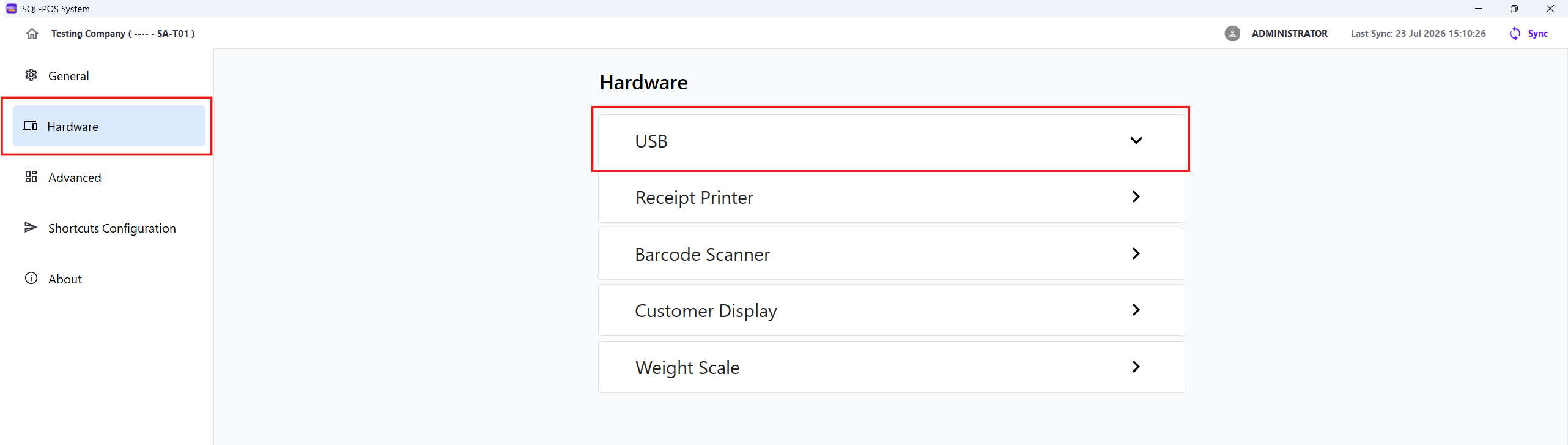

Click Hardware → USB

1. Enable USB backup
2. Select the required drive
3. Confirm that the drive status is detected
4. Click Save

note

Once enabled, a backup zip file is saved to the POS_Metadata folder on the selected USB drive each time a sync is completed

Receipt Printer

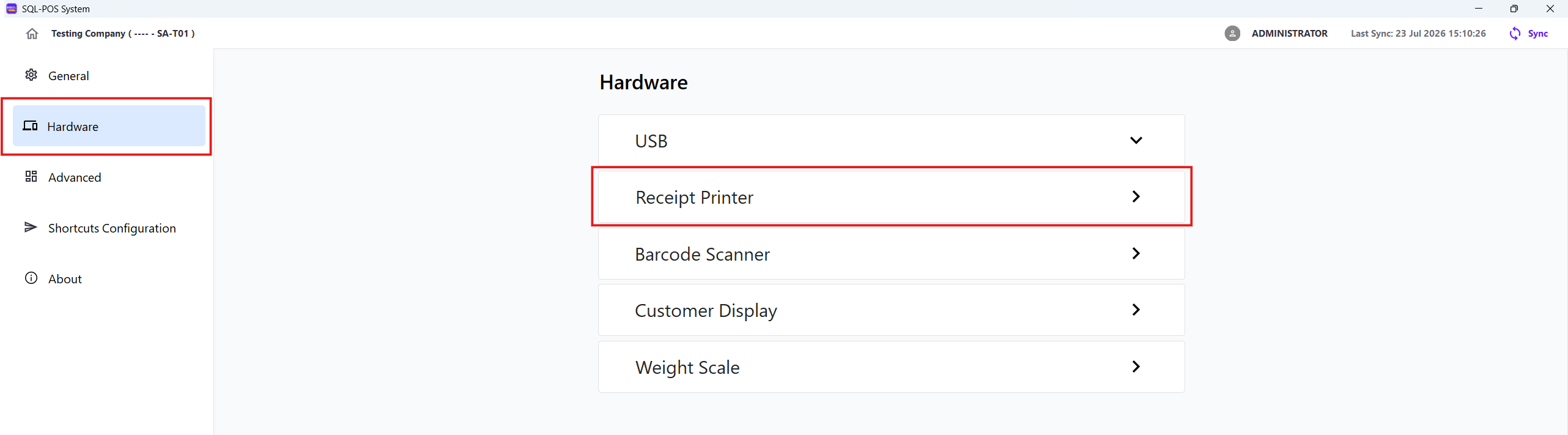

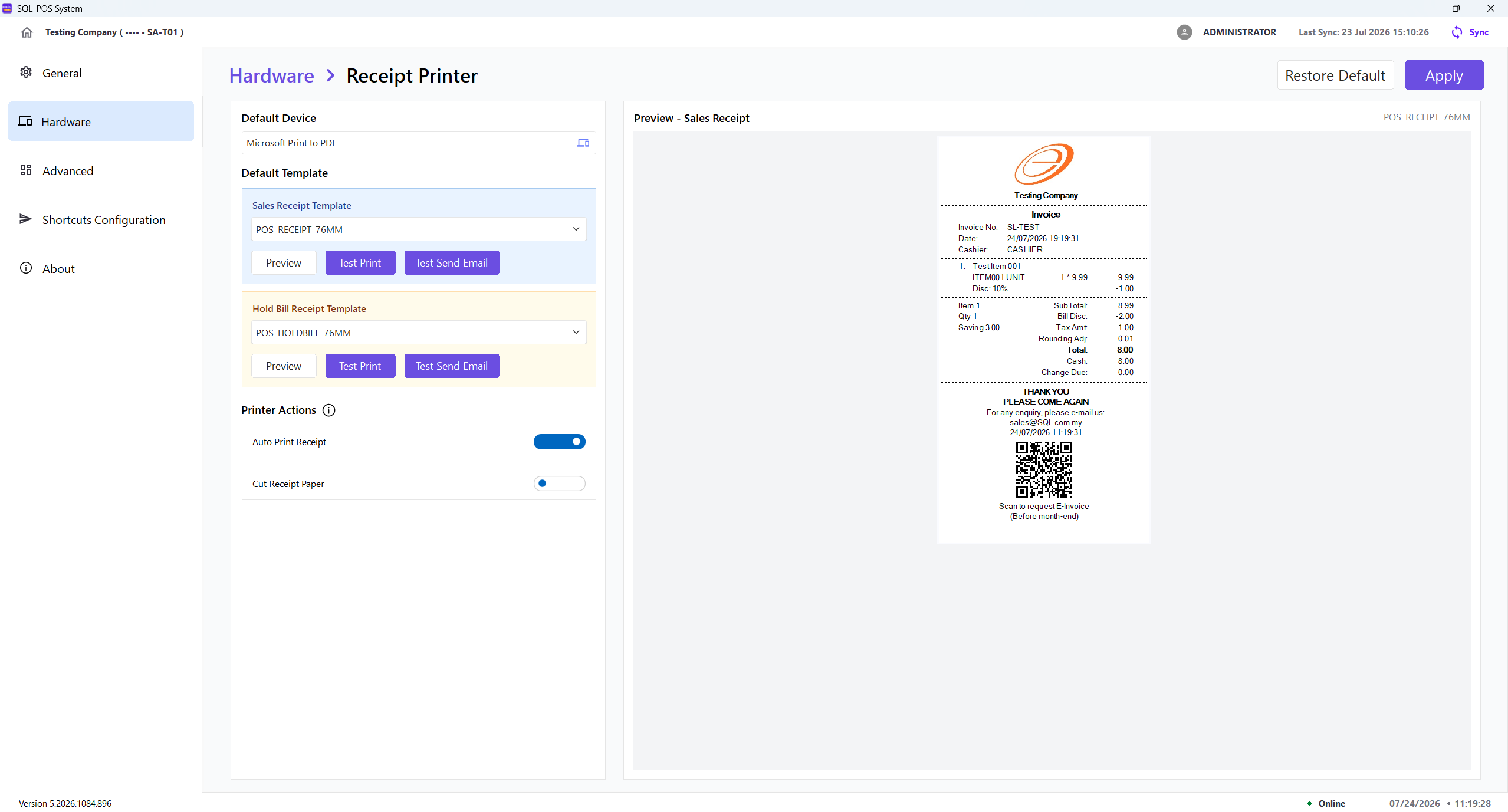

Click Hardware → Receipt Printer

Setting	Description
Default Device	Default printer used to print receipts
Sales Receipt Template	Default report template used when printing a completed sales receipt
Hold Bill Receipt Template	Default report template used when printing a hold-bill receipt
Preview	Displays a preview of the selected receipt template
Test Print	Prints a sample receipt using the selected template and default printer
Test Send Email	Sends a sample receipt as a PDF attachment to test the email receipt configuration

Printer Actions

These settings are identical to the options described in X-Pos Guide - Receipt Printer

warning

Cut Receipt Paper may conflict with the Windows printer-driver setting. If automatic paper cutting is enabled in both X-Pos and the printer driver, the printer may perform two cut actions for each receipt

Barcode Scanner

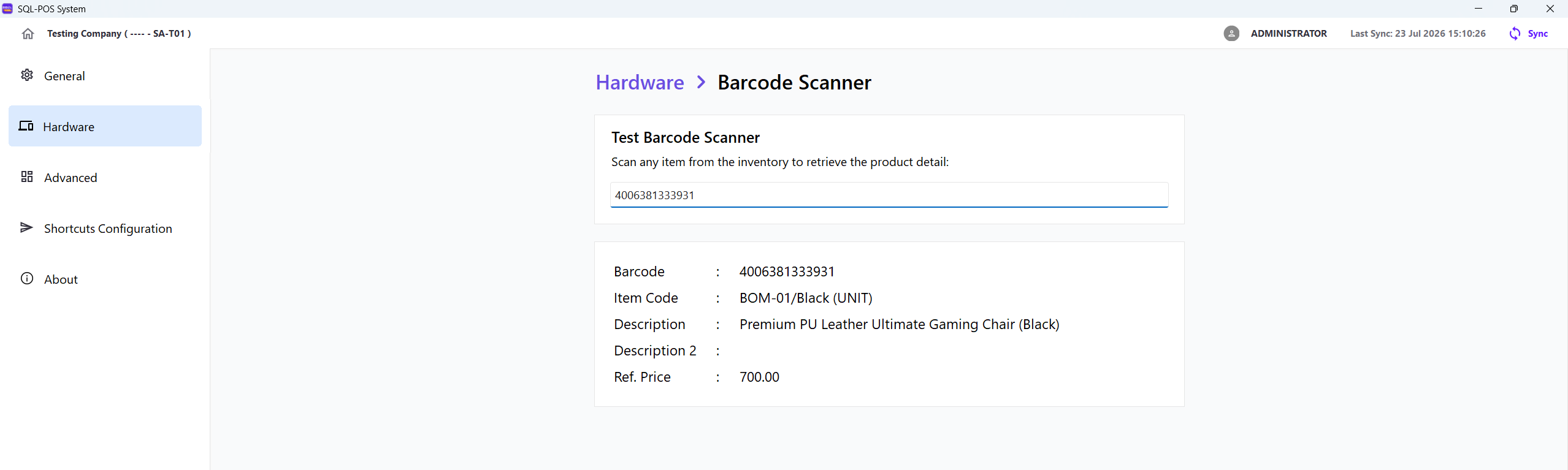

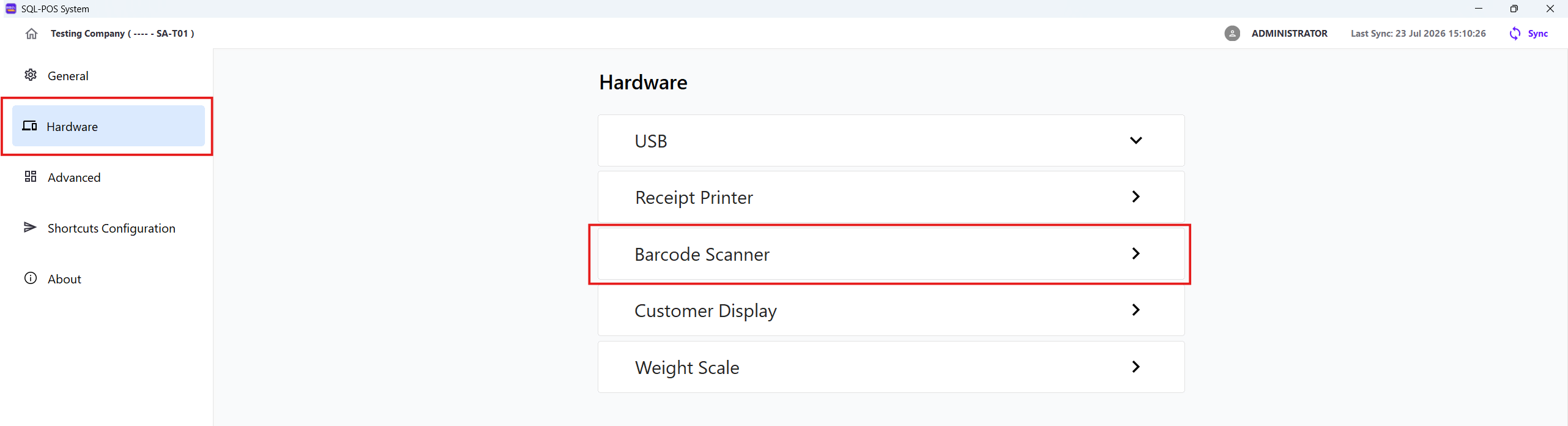

Click Hardware → Barcode Scanner

1. Scan an item barcode from the inventory
2. Display Barcode, Item Code, Description, Description 2, and Reference Price information

Customer Display

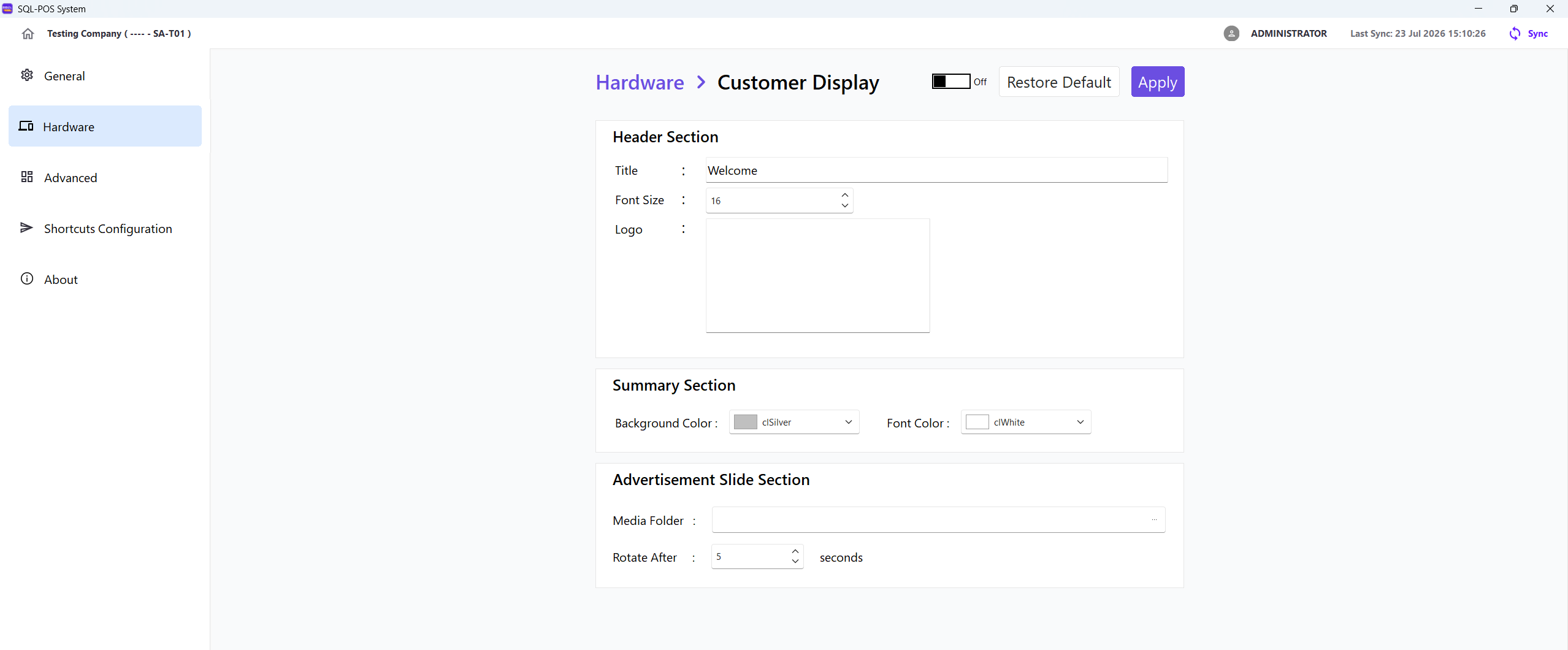

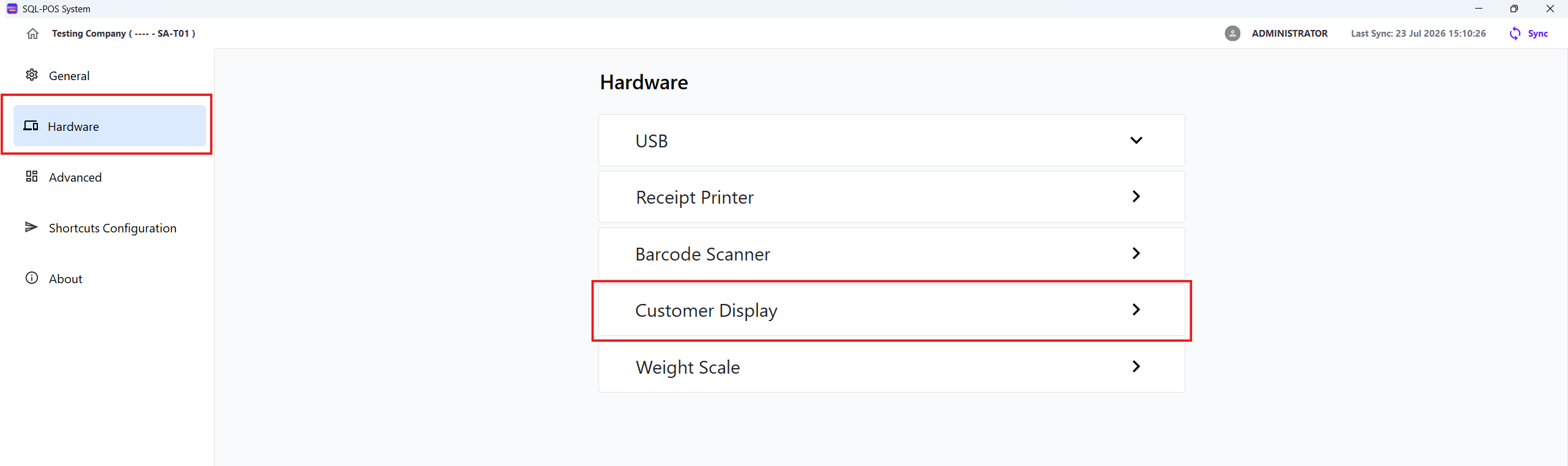

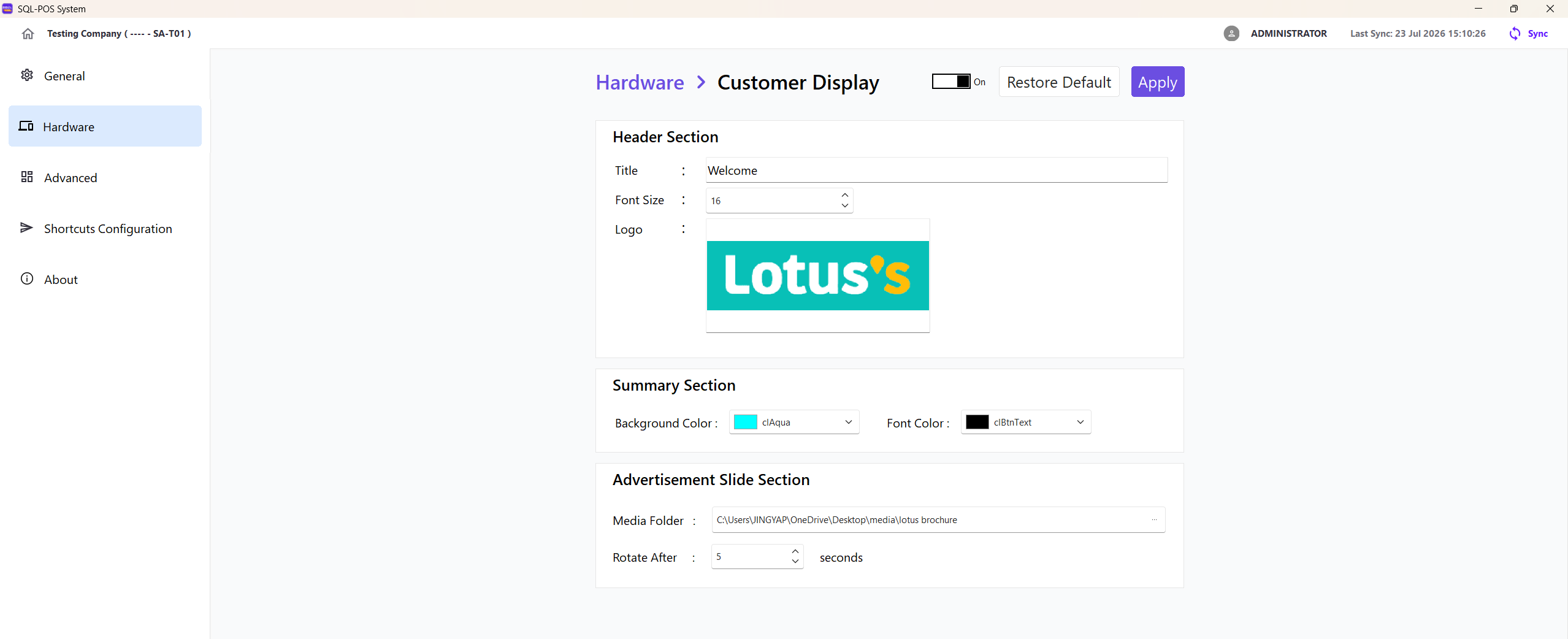

Click Hardware → Customer Display

Section	Configuration
Header Section	Set the display title, logo, and font size
Summary Section	Set the font colour and background colour for the sale summary
Advertisement Slide Section	Select the media folder and slide rotation interval

note

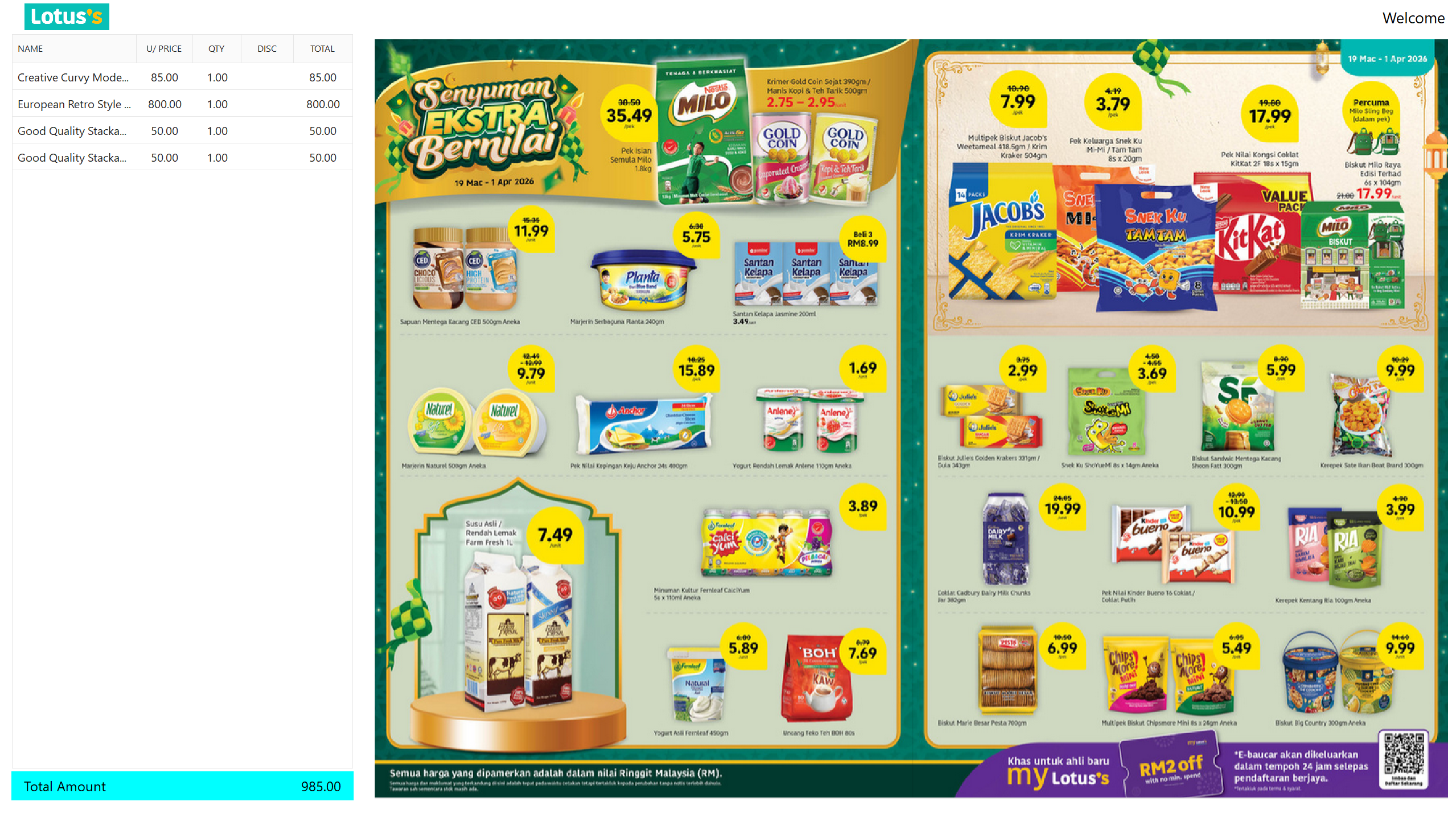

Once enabled, the configured header, summary, and advertisement content will display on the second screen for customers to view during checkout

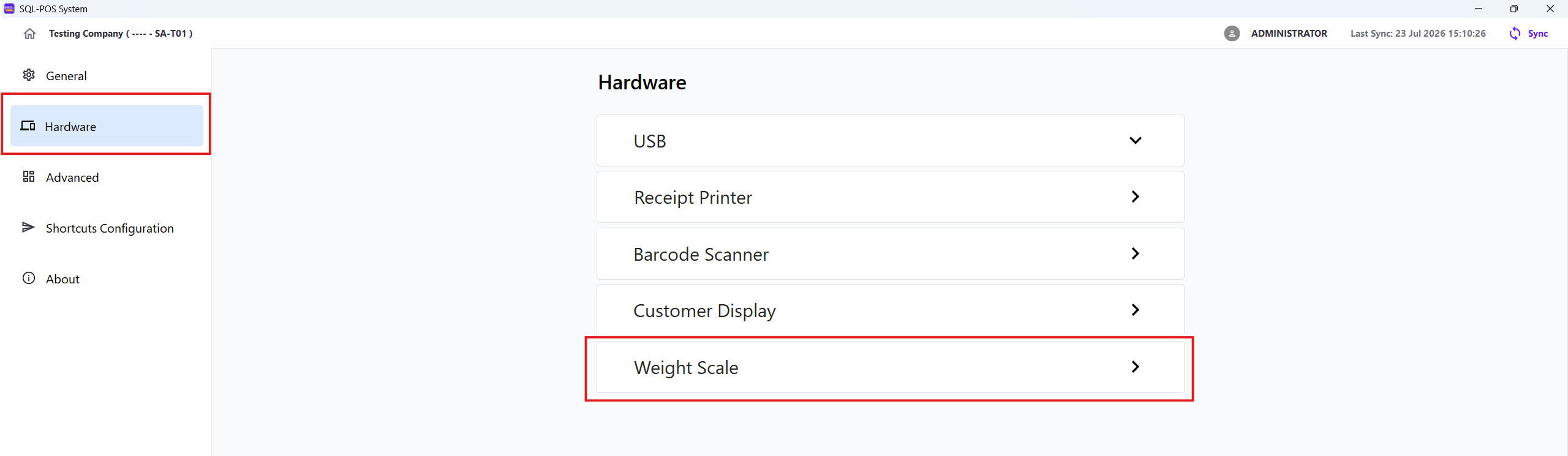

Weight Scale

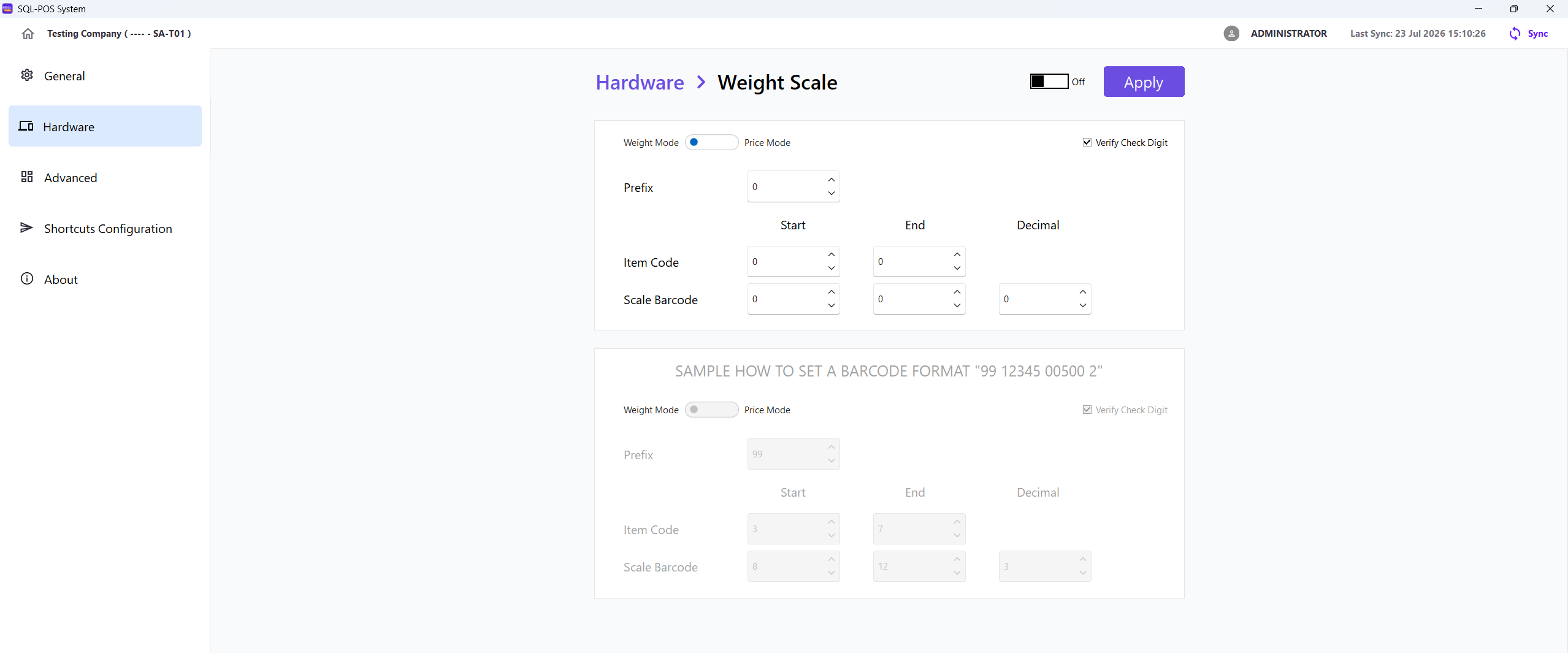

Click Hardware → Weight Scale

Setting	Description
Prefix	Beginning digits that identify a scale barcode
Item Code	Start and end positions for the item code within the barcode
Decimal	Decimal position for the encoded weight or price
Verify Check Digit	Validates the barcode check digit
Weight Mode / Price Mode	Defines whether the barcode contains a weight or a price value

Advanced

Sync From Local

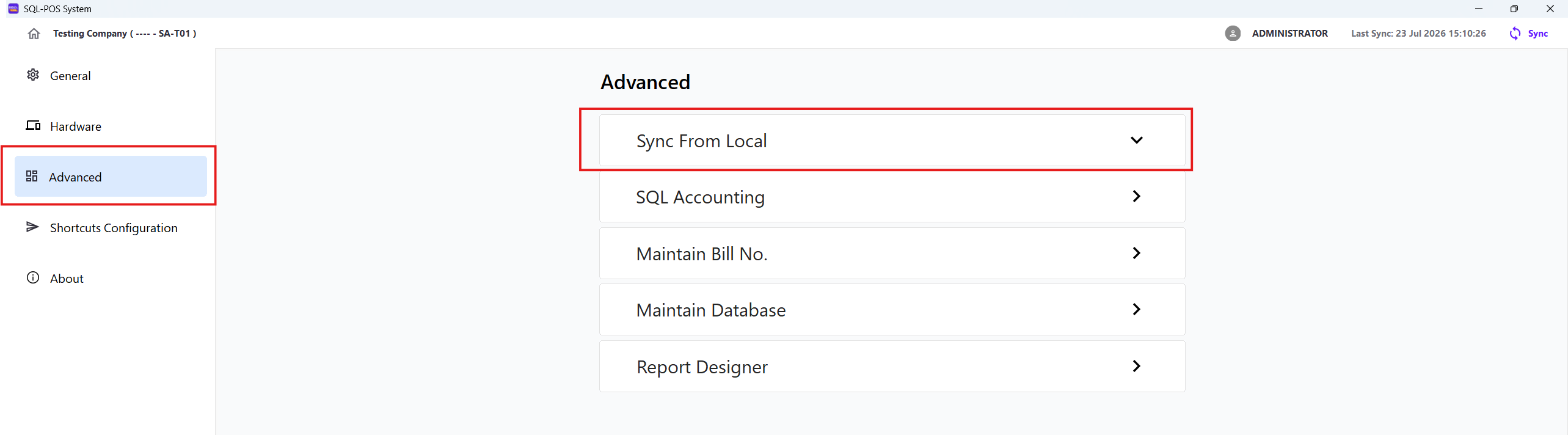

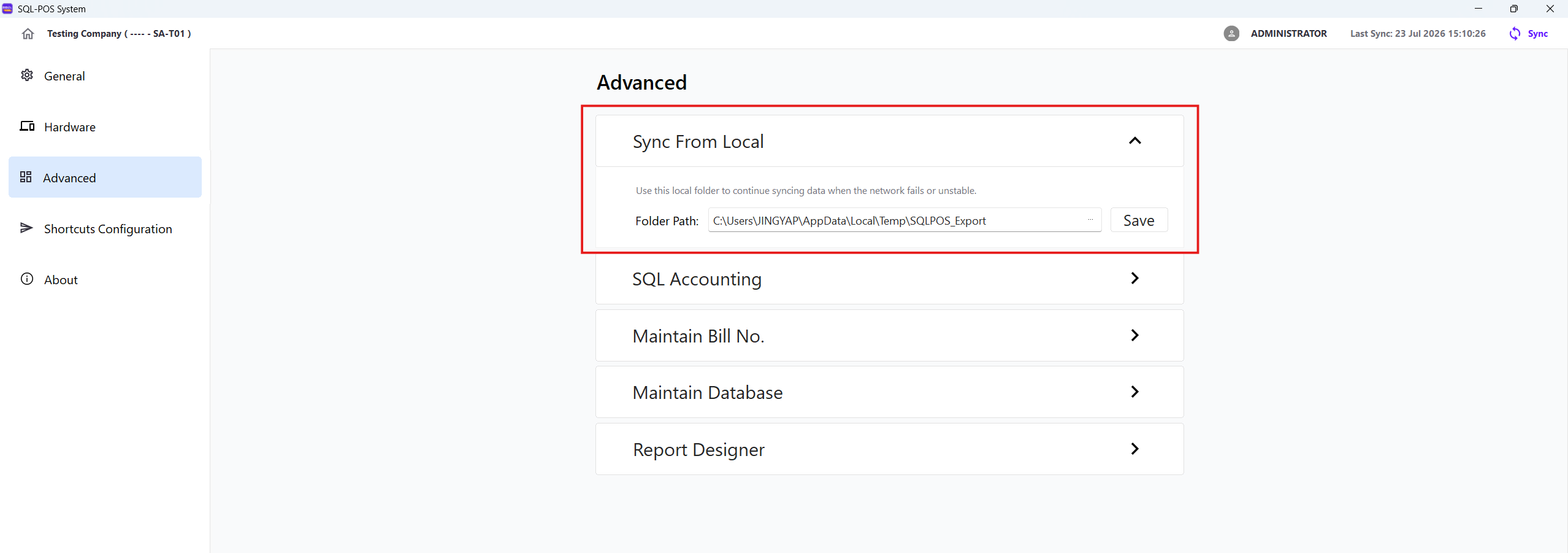

Click Advanced → Sync From Local

1. Select the folder path
2. Confirm that the folder is available to the terminal
3. Click Save

For instructions on synchronizing with a local export file, please refer to the Getting Started - Method 2: Use a Local Export File

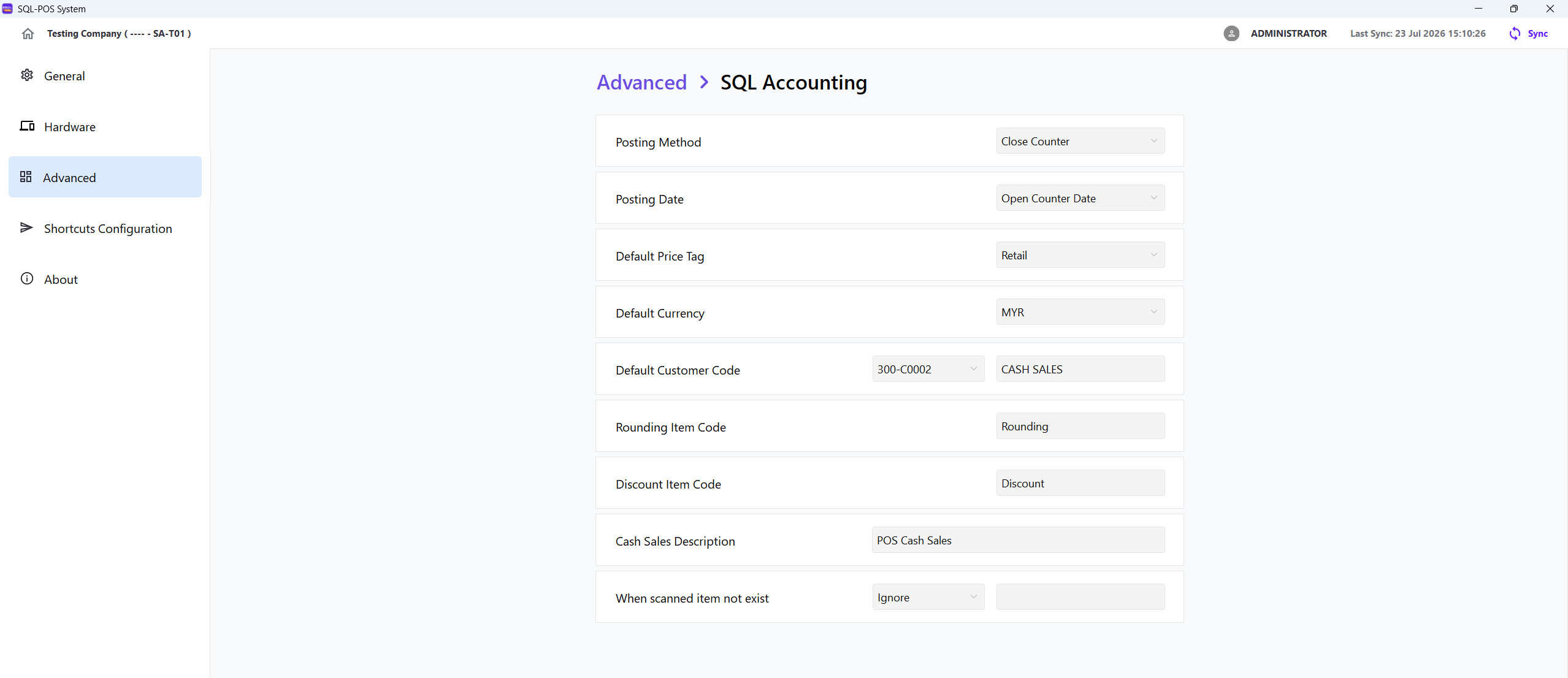

SQL Accounting

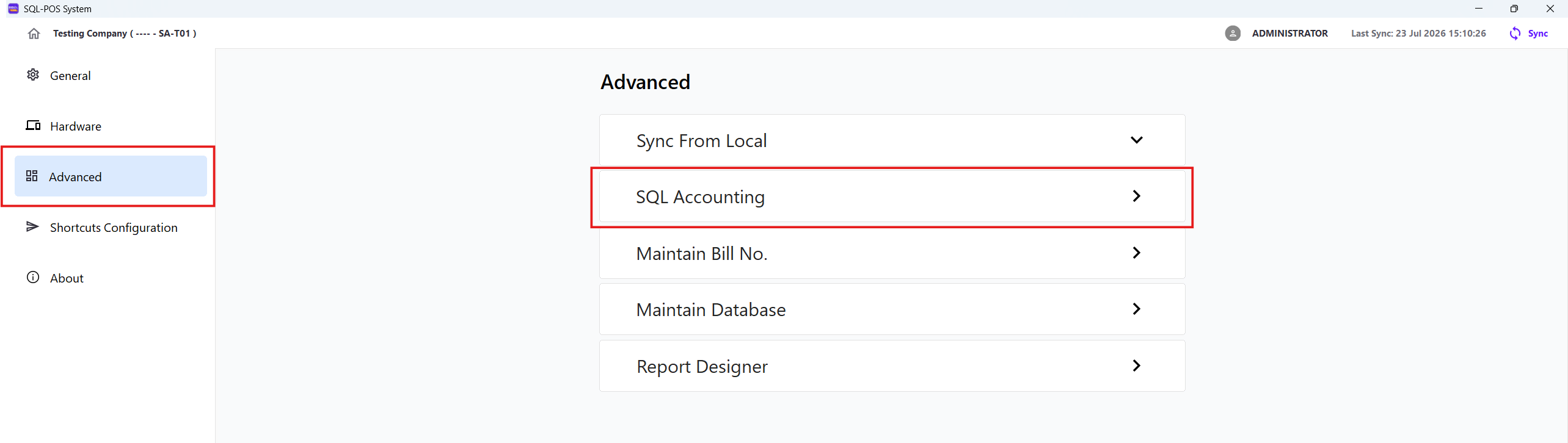

Click Advanced → SQL Accounting

These settings are identical to the options described in X-Pos Guide - Posting

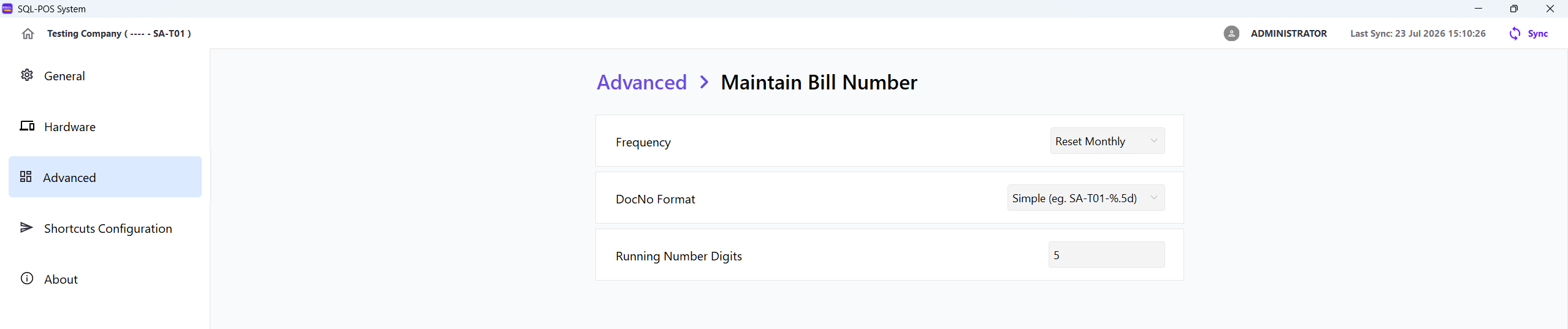

Maintain Bill No

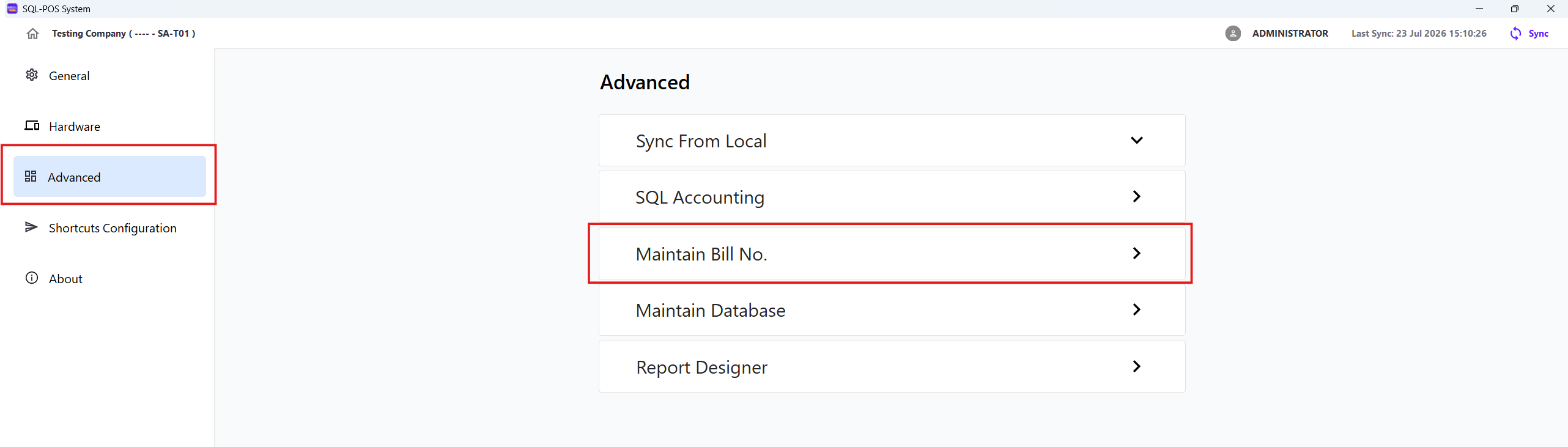

Click Advanced → Maintain Bill No

These settings are identical to the options described in X-Pos Guide - Posting Behaviour

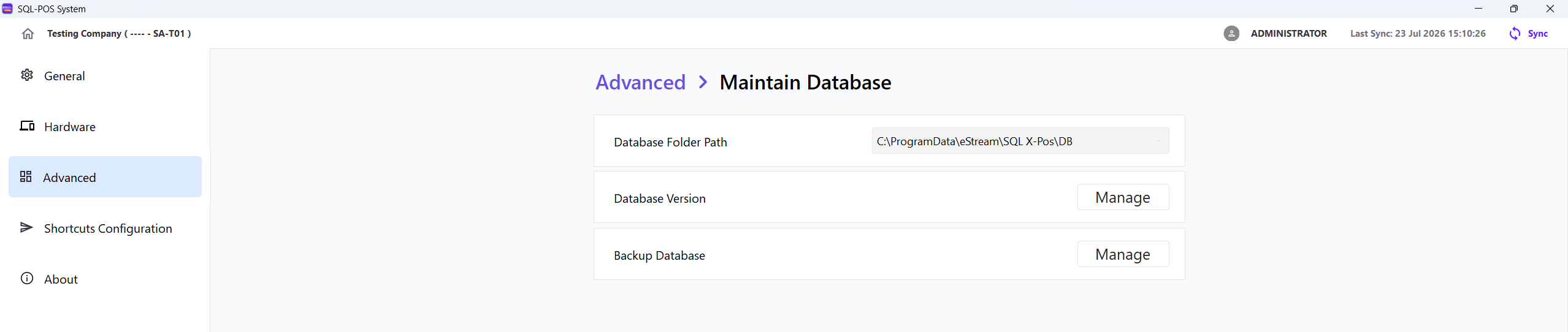

Maintain Database

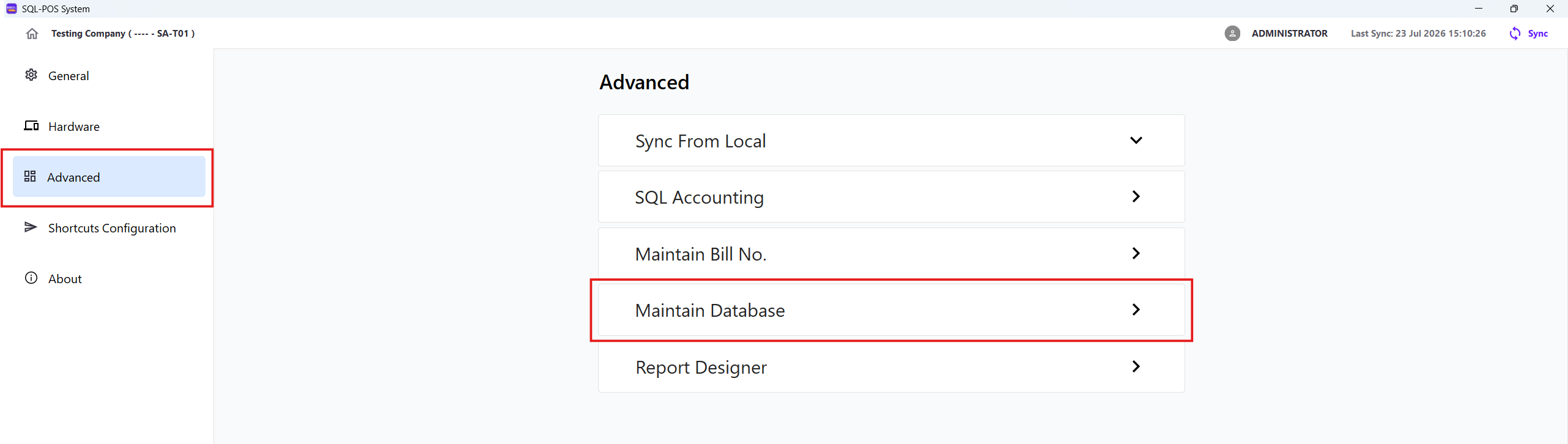

Click Advanced → Maintain Database

Setting	Description
Database Folder Path	Folder path of the database currently used
Database Version → Manage	See Database Version
Backup Database → Manage	See Backup Database

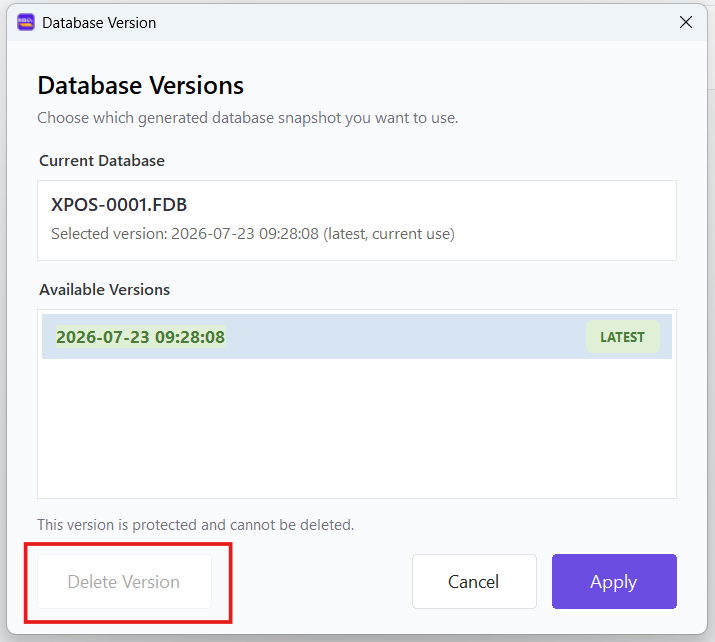

Database Version

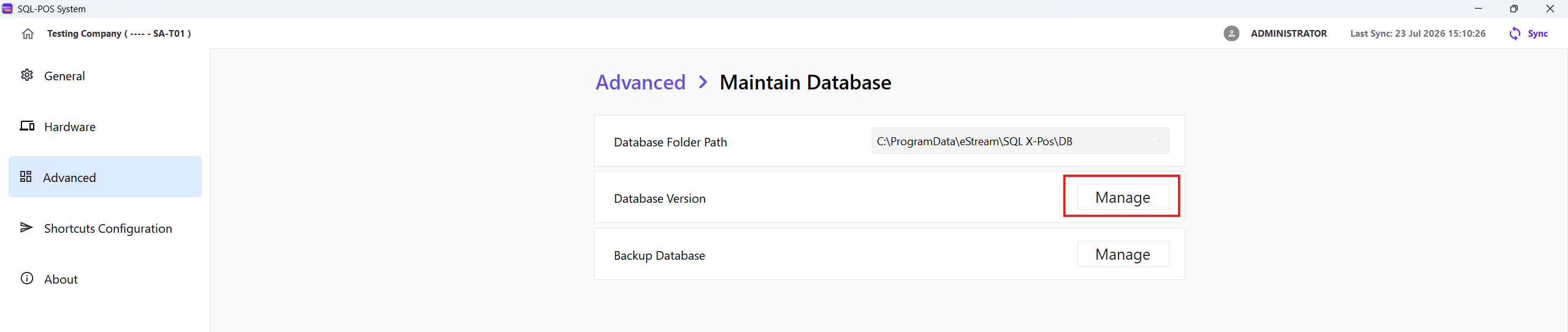

1. Click Database Version → Manage



2. The current database version is displayed under Current Database

3. Select the required version from Available Versions

4. Click Apply to use the selected database version, or click Cancel to close without changes

5. To remove an unused version, select it and click Delete Version



   note

   The current database version and the latest version are protected and cannot be deleted

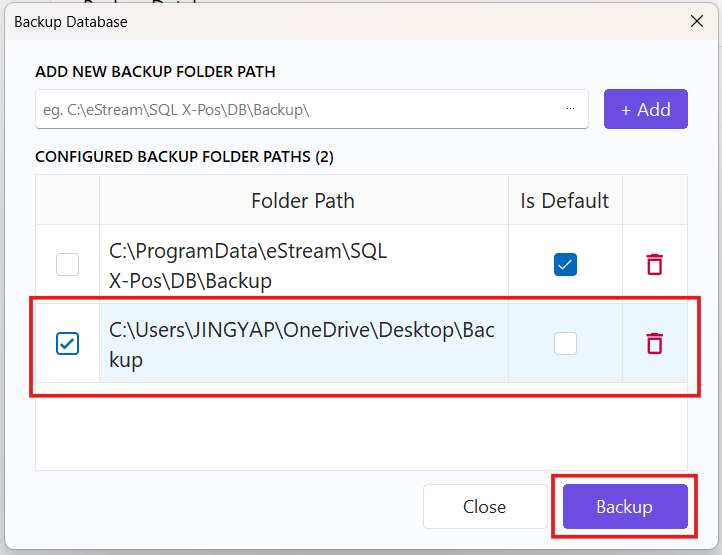

Backup Database

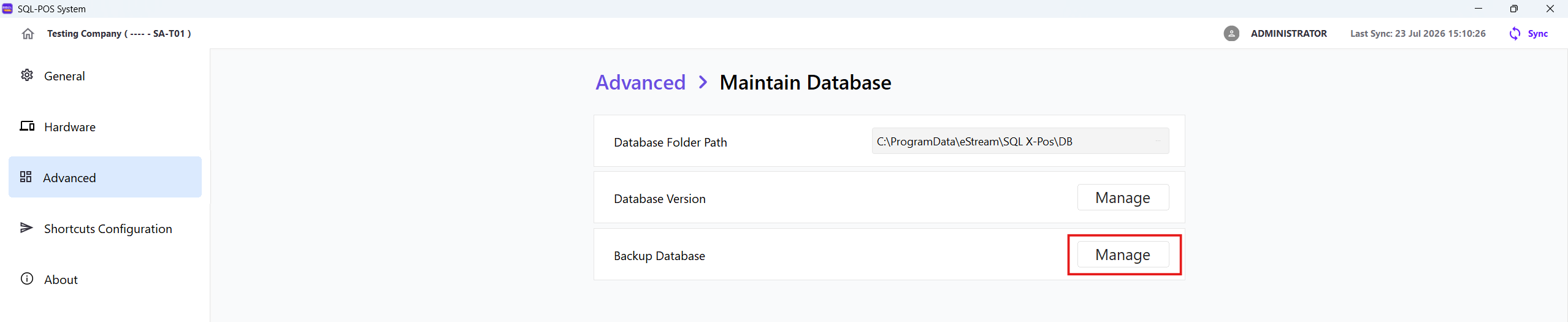

1. Click Backup Database → Manage



2. Enter or select a backup folder path.

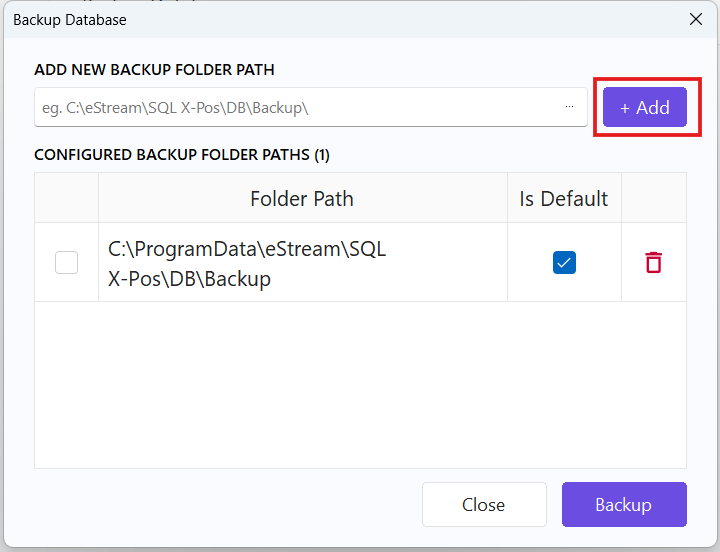

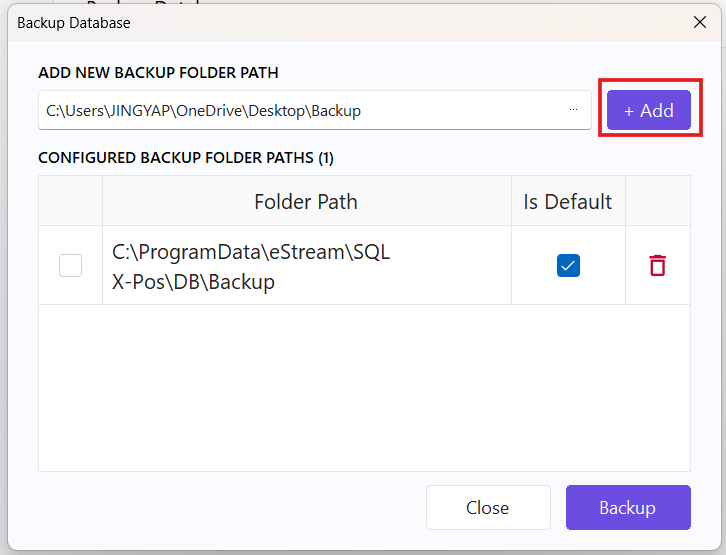

3. Click + Add to add the folder to Configured Folder Paths

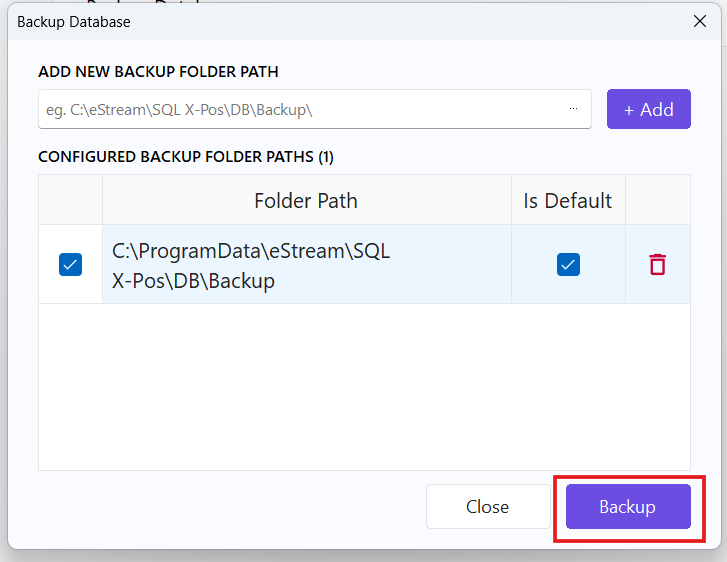

4. Click Backup to create a database backup in the selected folder

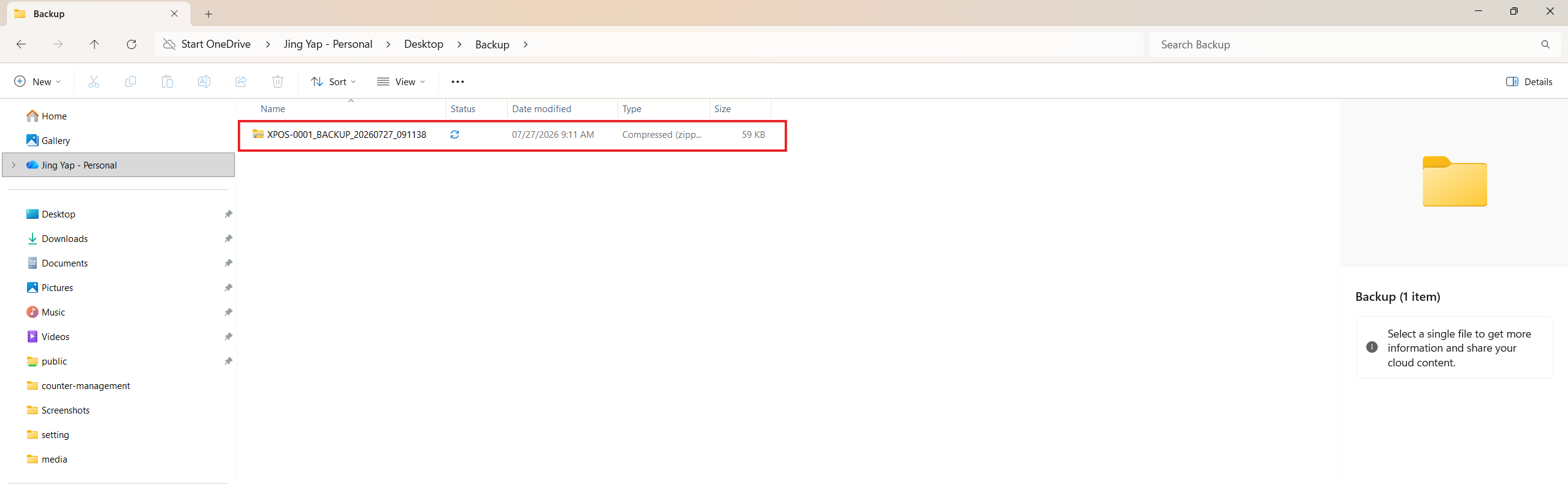

5. The database zip file will be backup in the selected folder



Report Designer

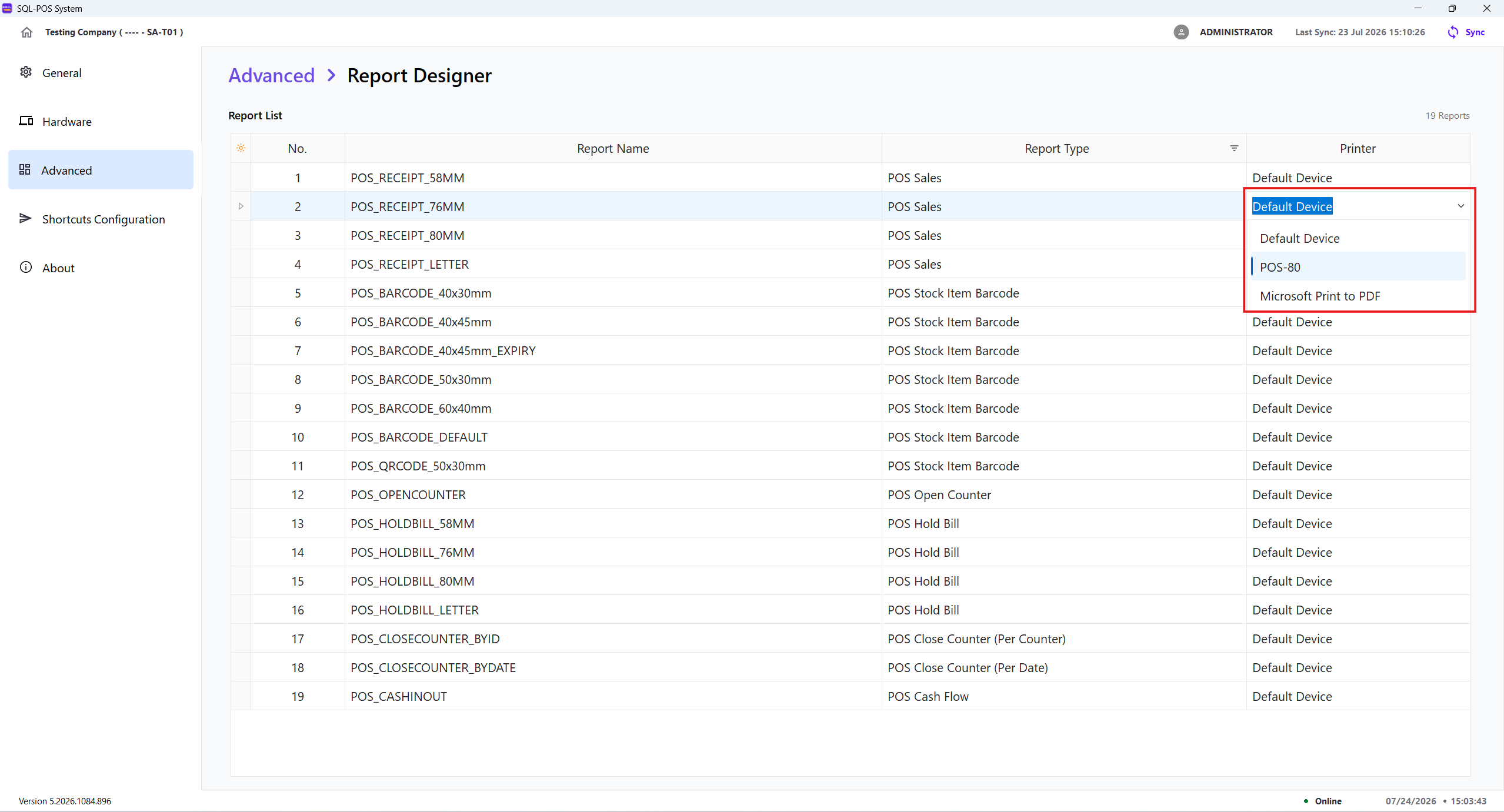

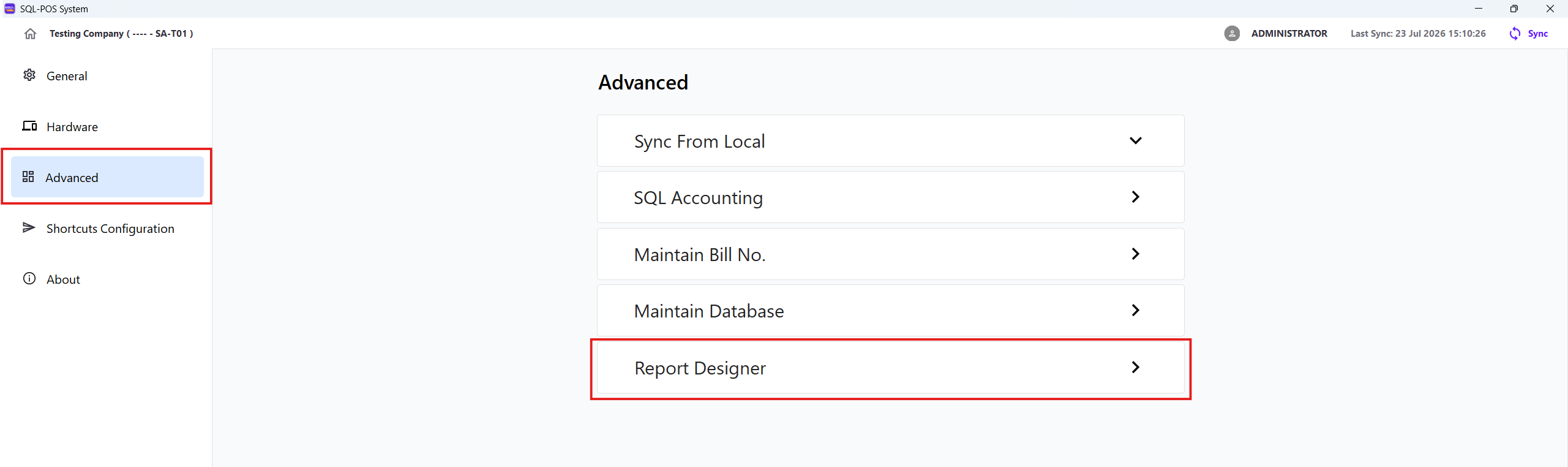

Click Advanced → Report Designer

Each report template can be assigned its own printer

note

Select Default Device in the Printer field to print that report using the printer configured under Hardware → Receipt Printer

Shortcuts Configuration

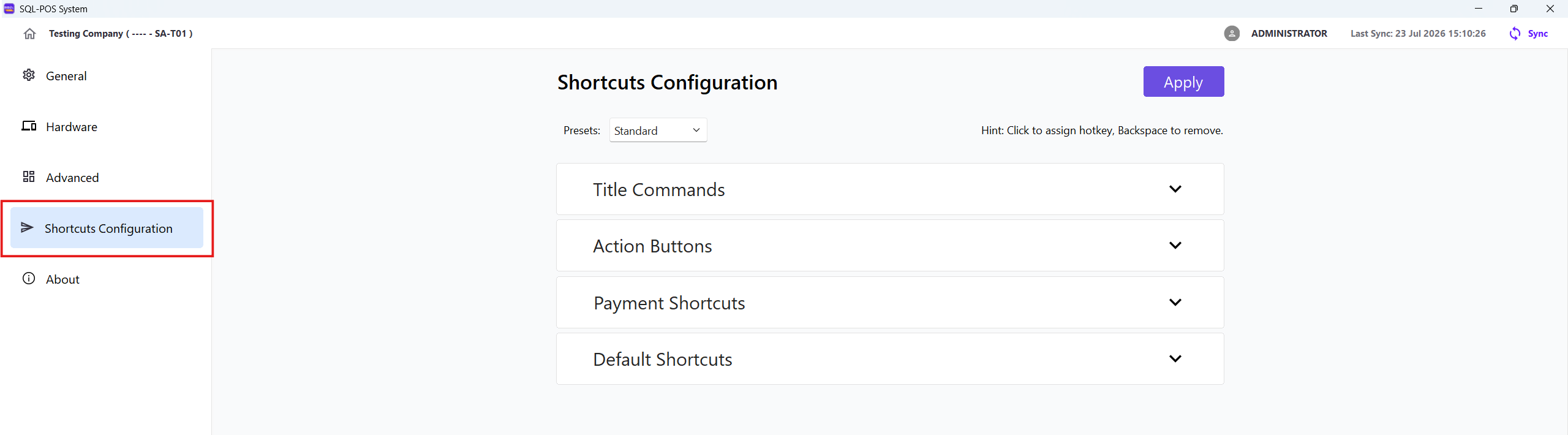

Click Shortcuts Configuration

Section	Description
Title Commands	Configures commands displayed in the POS title area
Action Buttons	Configures action buttons available during transactions
Payment Shortcuts	Configures quick-access shortcuts for checkout payment methods
Default Shortcuts	Displays the standard list of system-default POS shortcuts

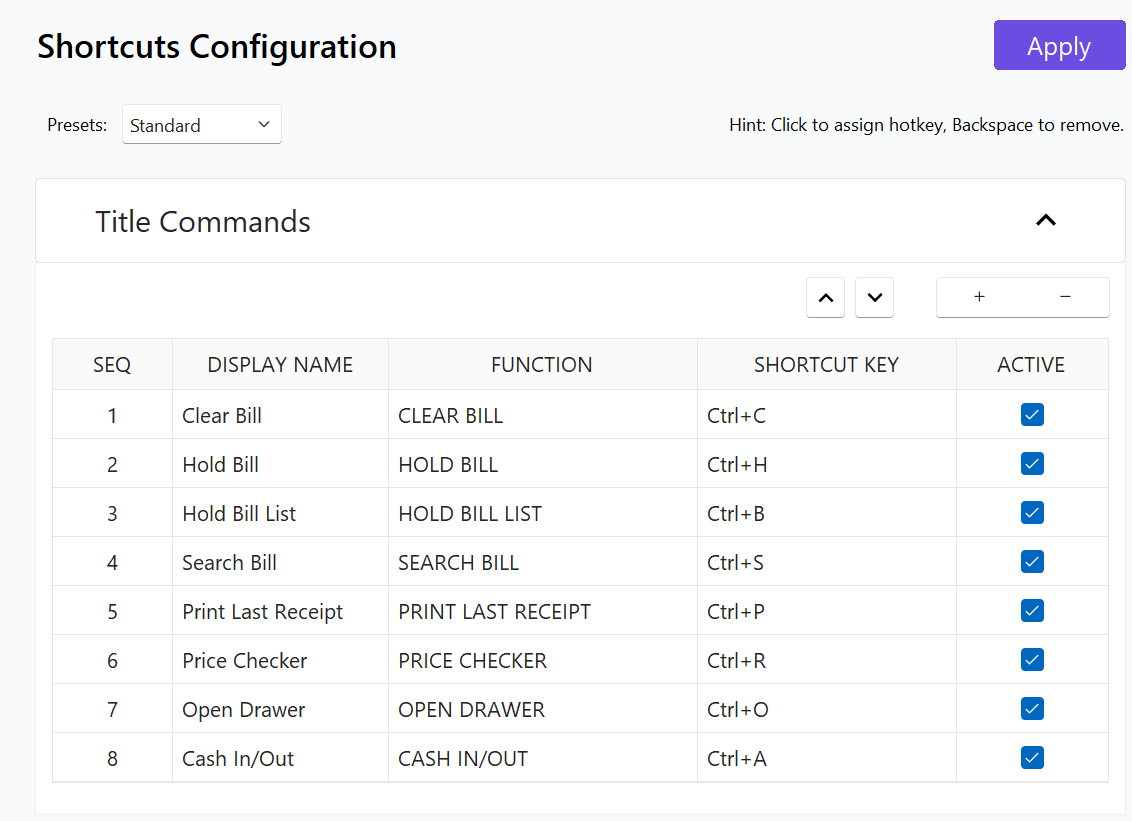

Presets

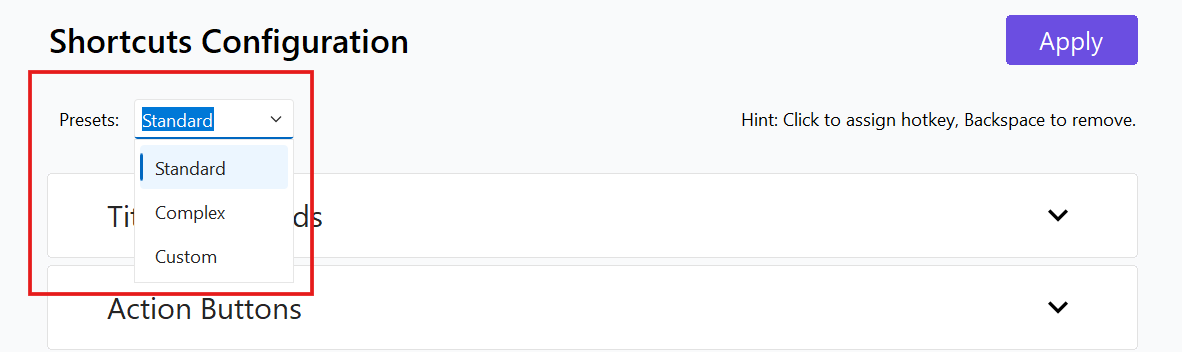

Use Presets to select the command layout used in the Classic Checkout screen

Preset	Title Commands	Action Buttons
Standard	No preset title commands	+1, -1, Quantity, Item Disc., Price and UOM, Clear Bill, Hold Bill, and Hold Bill List
Complex	Clear Bill, Hold Bill, Hold Bill List, Search Bill, Print Last Receipt, Price Checker, Open Drawer, and Cash In/Out.	+1, -1, Quantity, Item Disc., Price and UOM, Batch No., Serial No., and Item Template
Custom	Displays the active commands configured in Title Commands	Displays the active buttons configured in Action Buttons

Configure Title Commands / Action Buttons

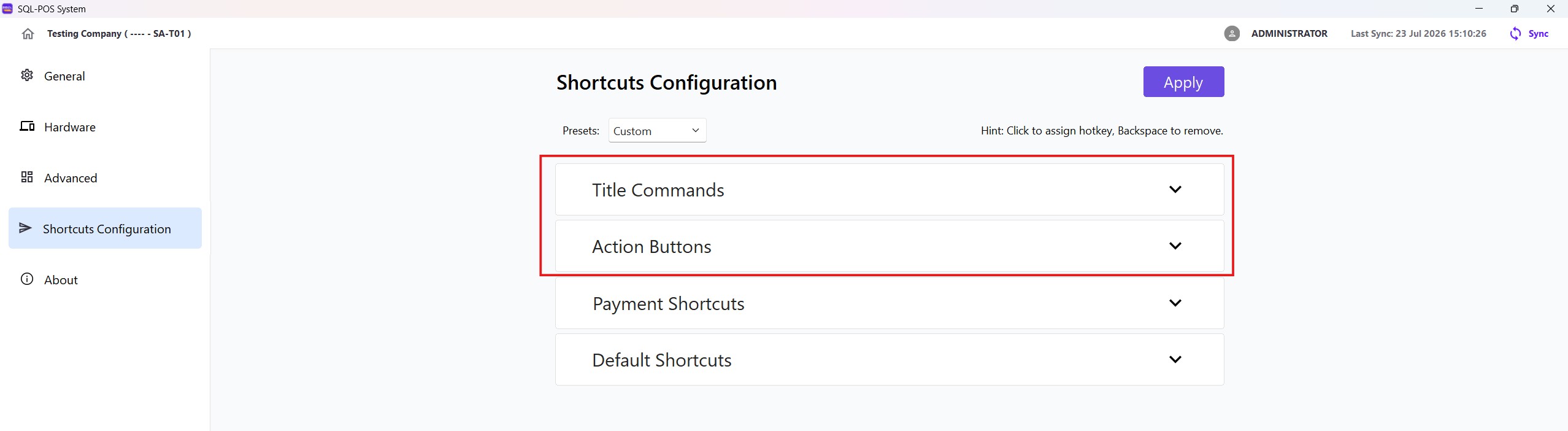

1. Select Title Commands or Action Buttons

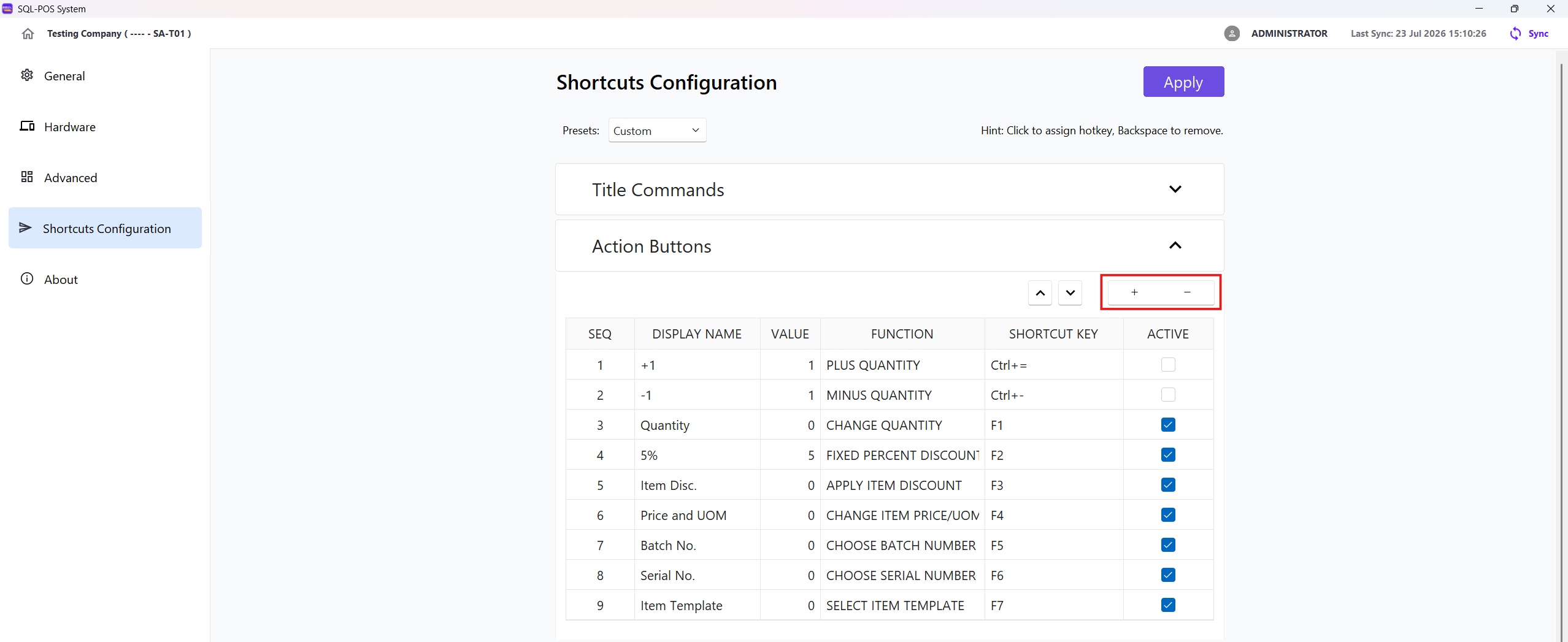

2. Click + Add to create a new entry

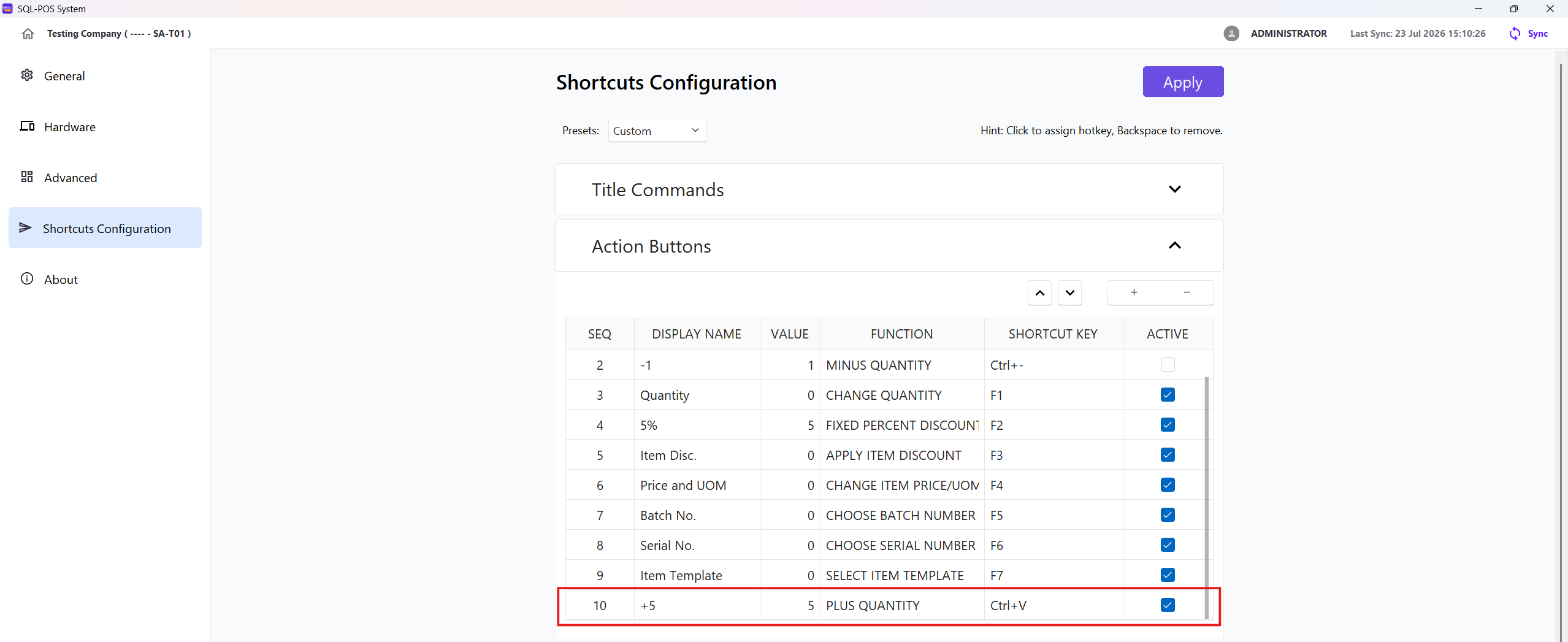

3. Enter the Seq, Display Name, and Value, select a Function, enter the Shortcut Key, and set Active status

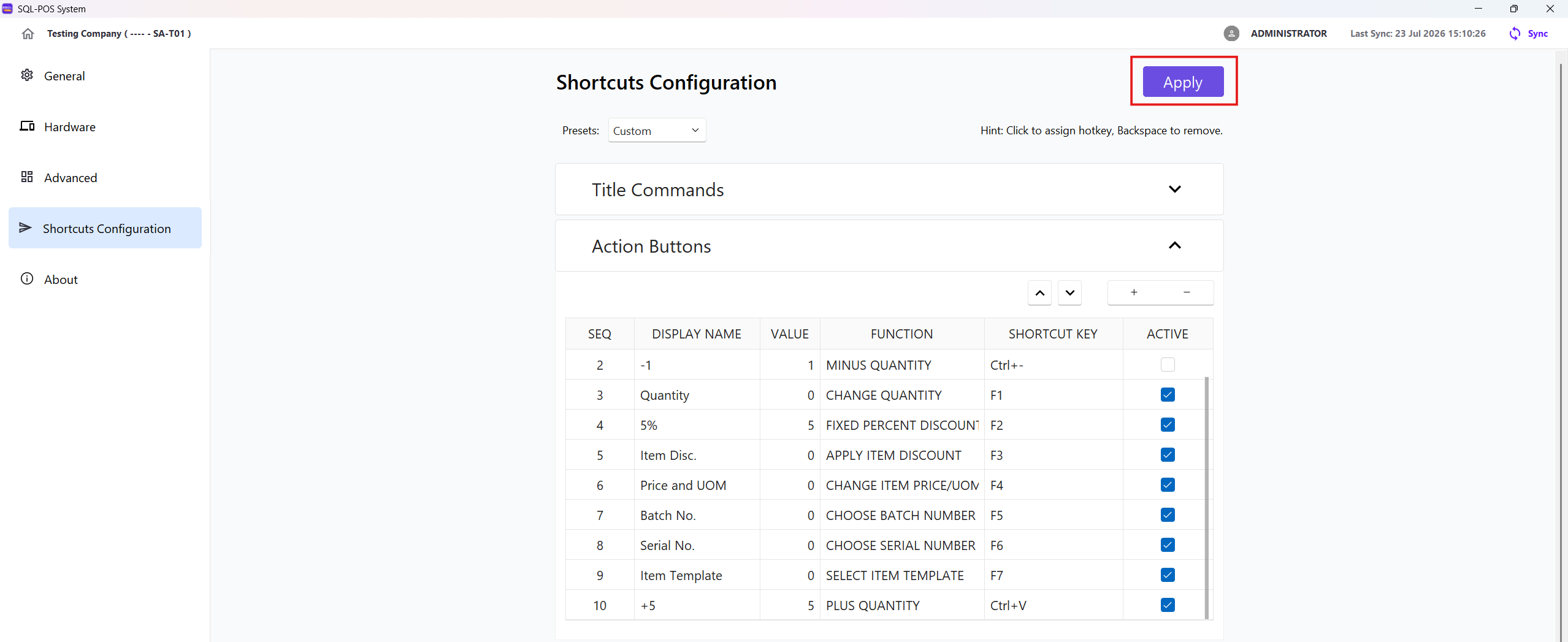

4. Click Apply to save the changes



tip

• Click - Remove to delete an entry
• Use the Up or Down arrow to adjust the display sequence

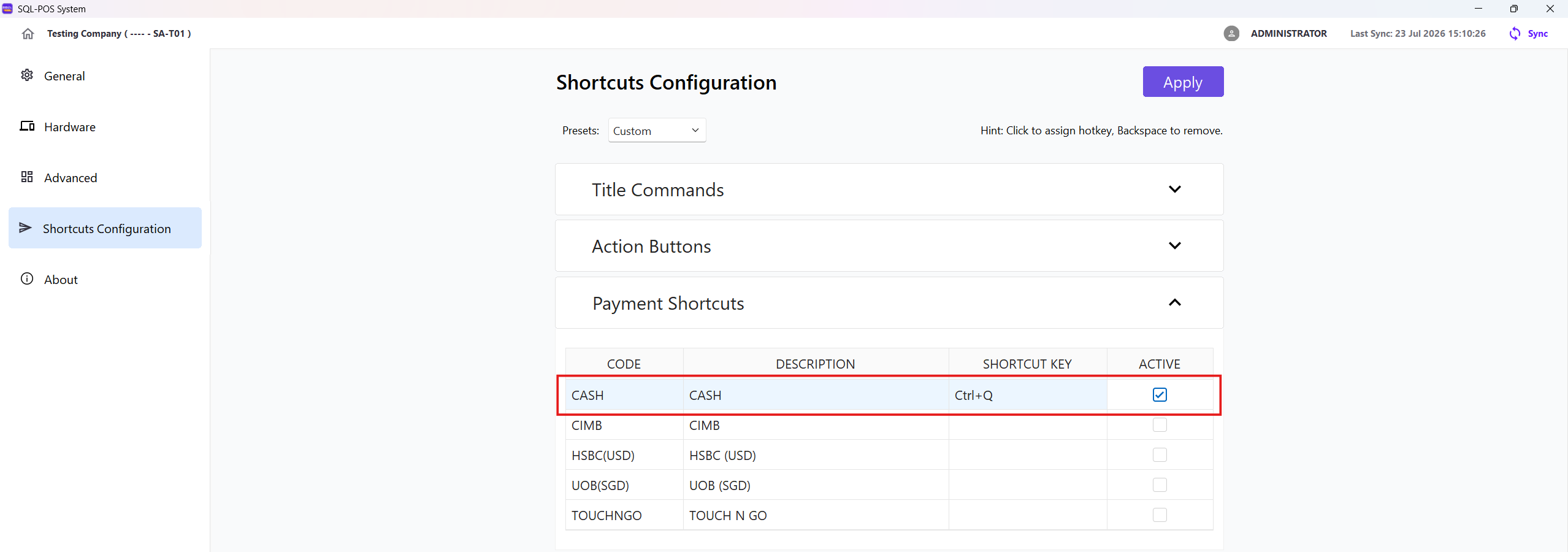

Configure Payment Shortcuts

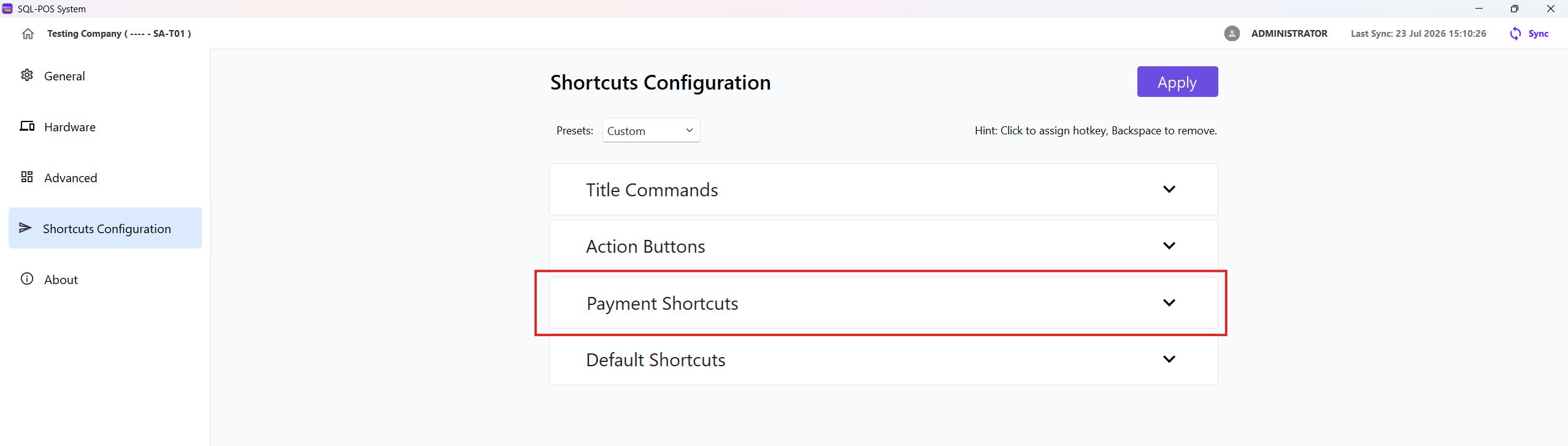

1. Select Payment Shortcuts



2. Enter the Shortcut Key and set Active to enable or disable the shortcut on the POS screen

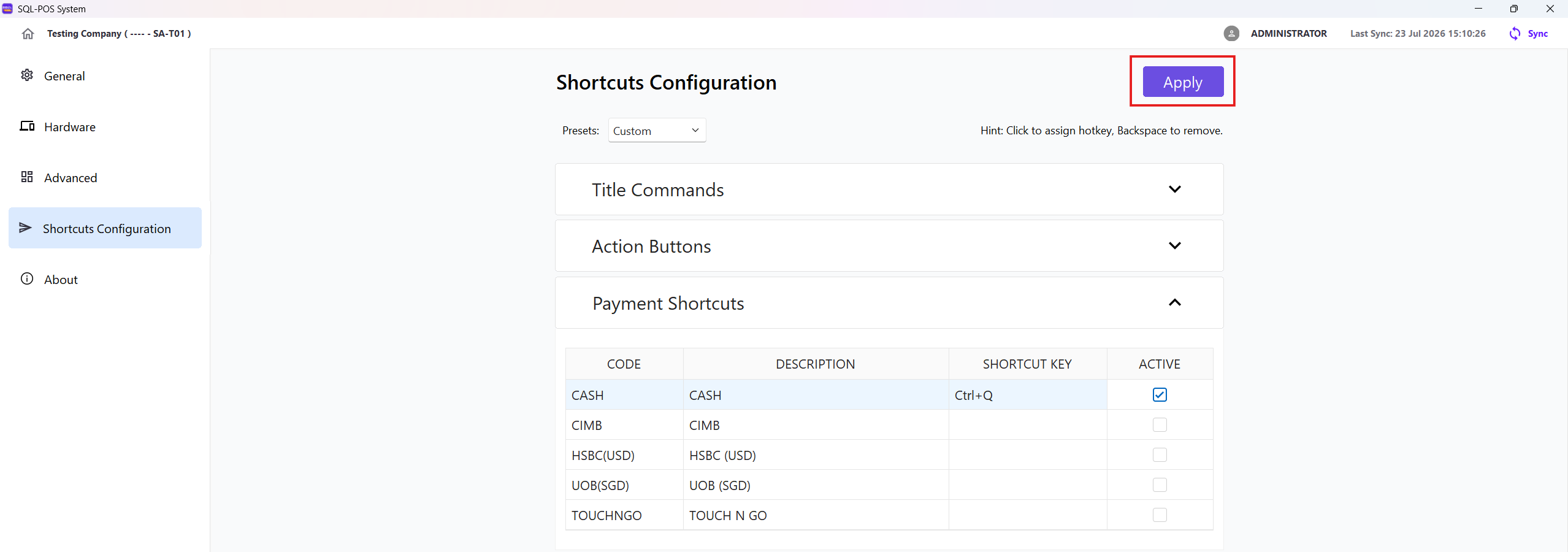

3. Click Apply to save the changes



note

• Press Backspace in the Shortcut Key field to remove an assigned shortcut
• A shortcut key can only be assigned to one command, action, or payment method

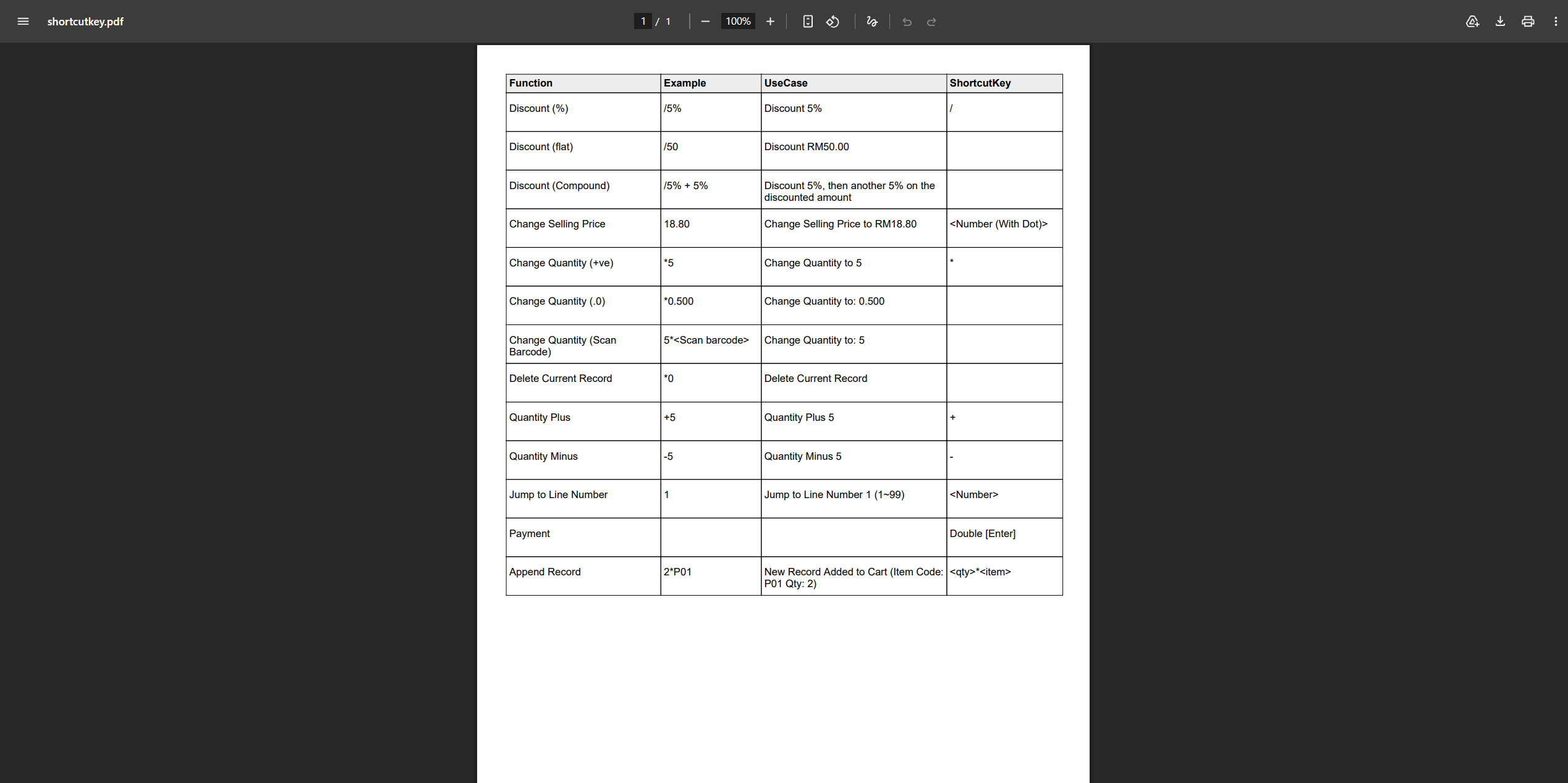

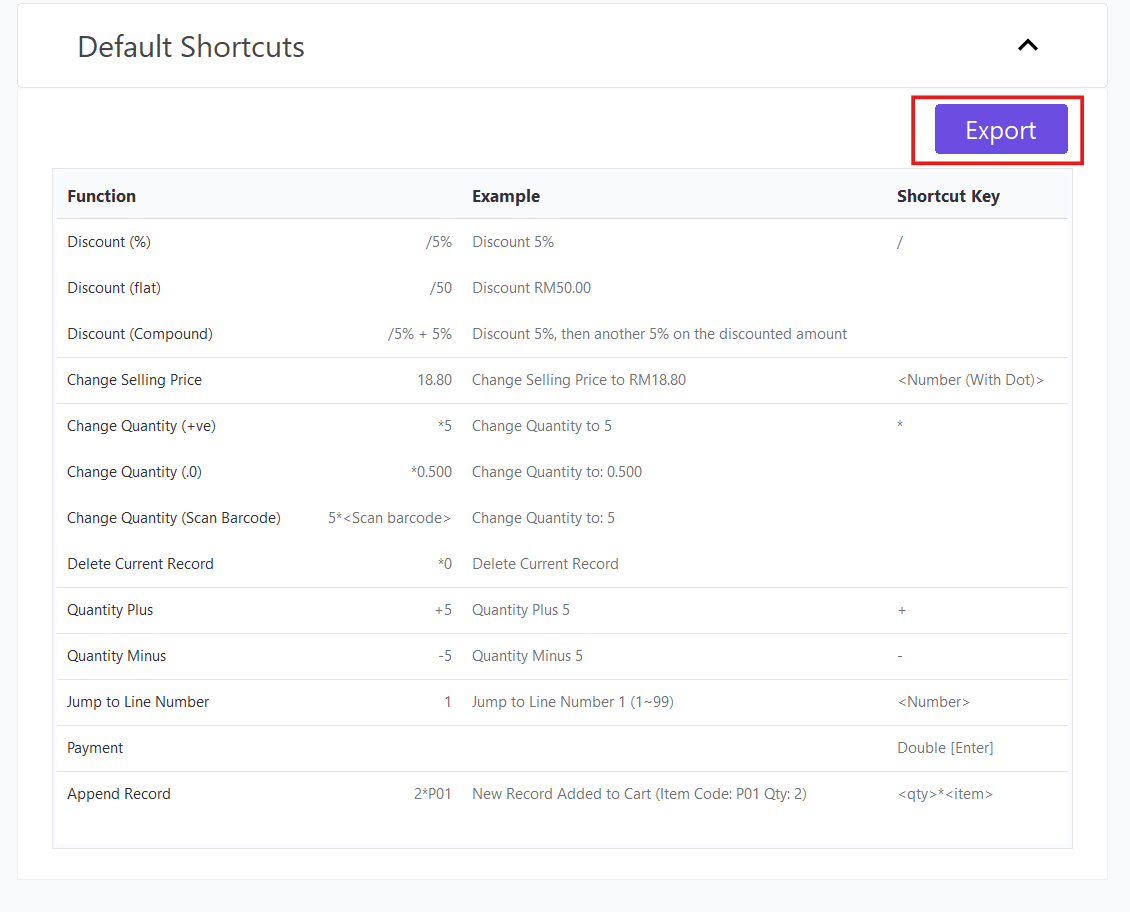

Export Default Shortcuts

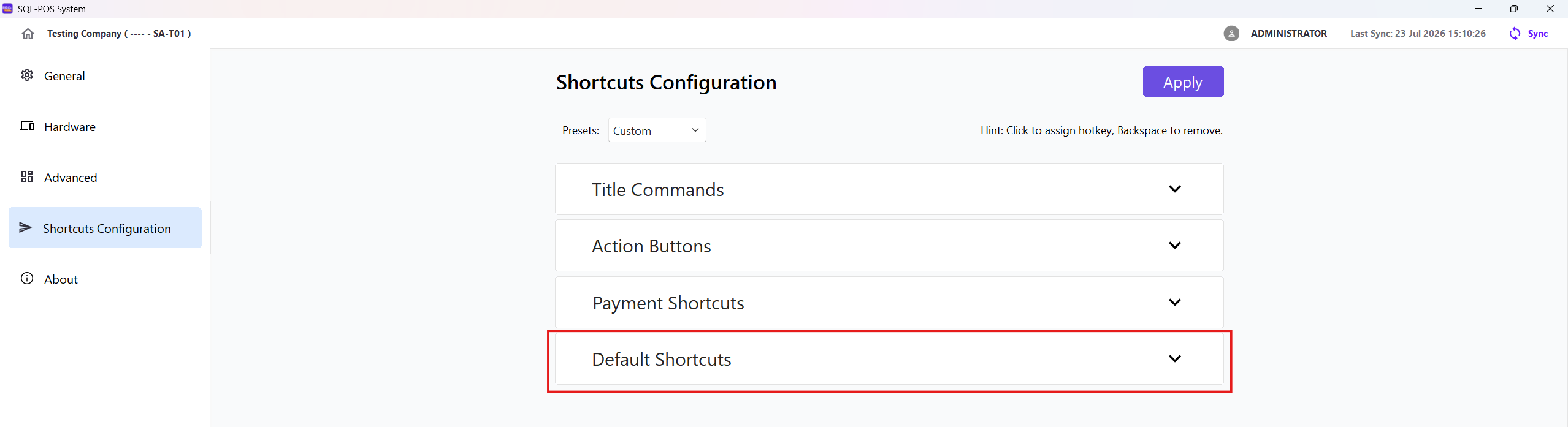

1. Select Default Shortcuts

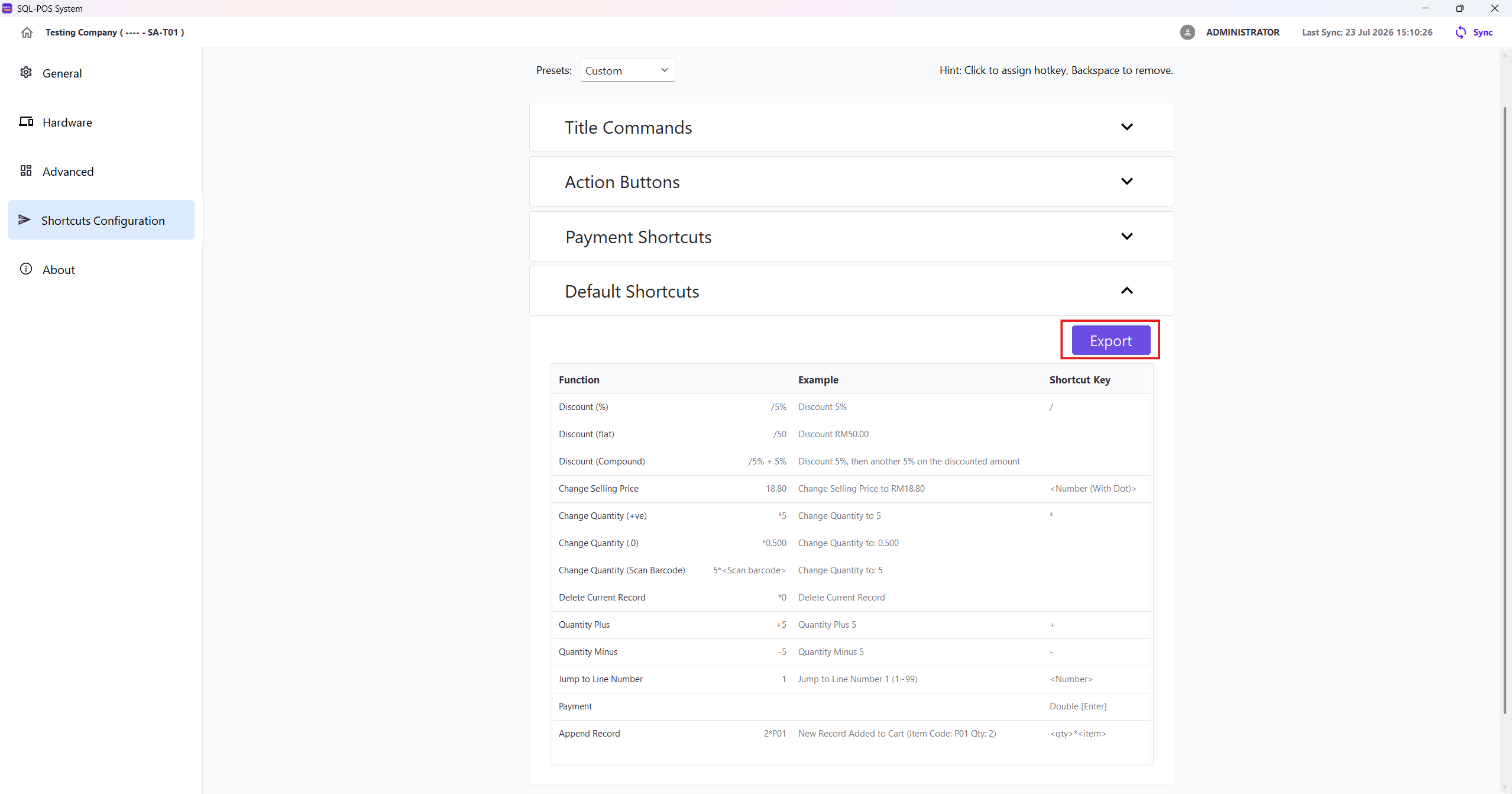

2. Click Export to export the standard list of system-default POS shortcuts for reference



About

Location

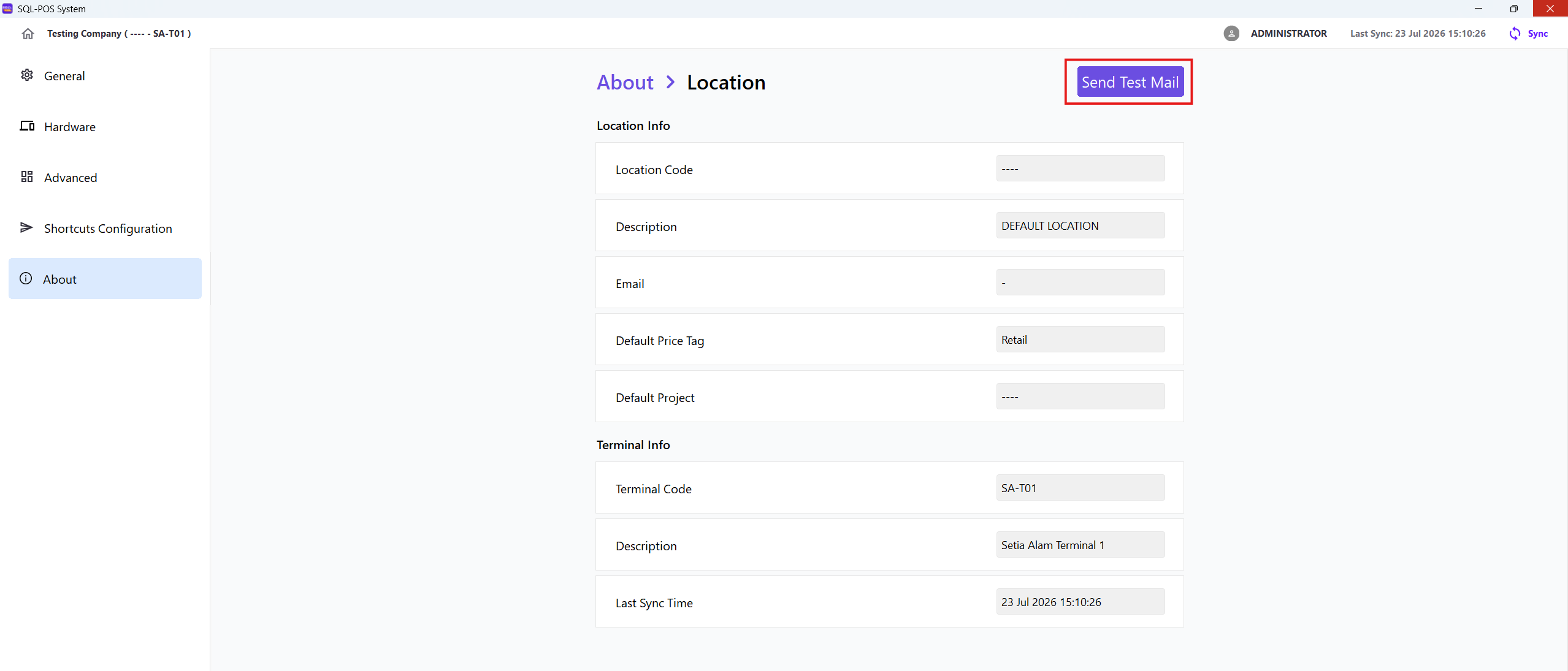

Click About → Location

Click Send Test Mail to verify the email address configured for the location

Section	Details
Location Info	Location code, description, email address, default project, and default price tag
Terminal Info	Terminal code, description, and last synchronisation time

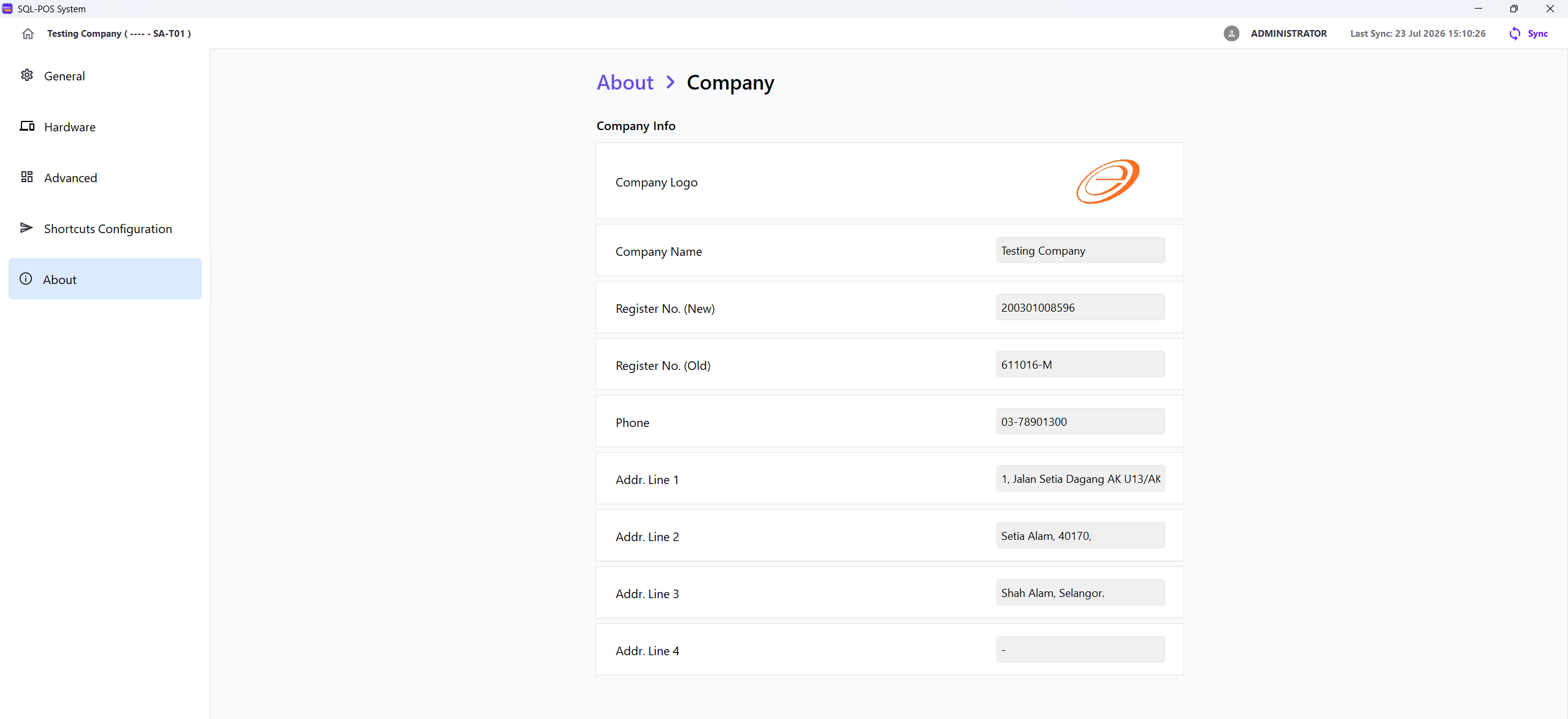

Company

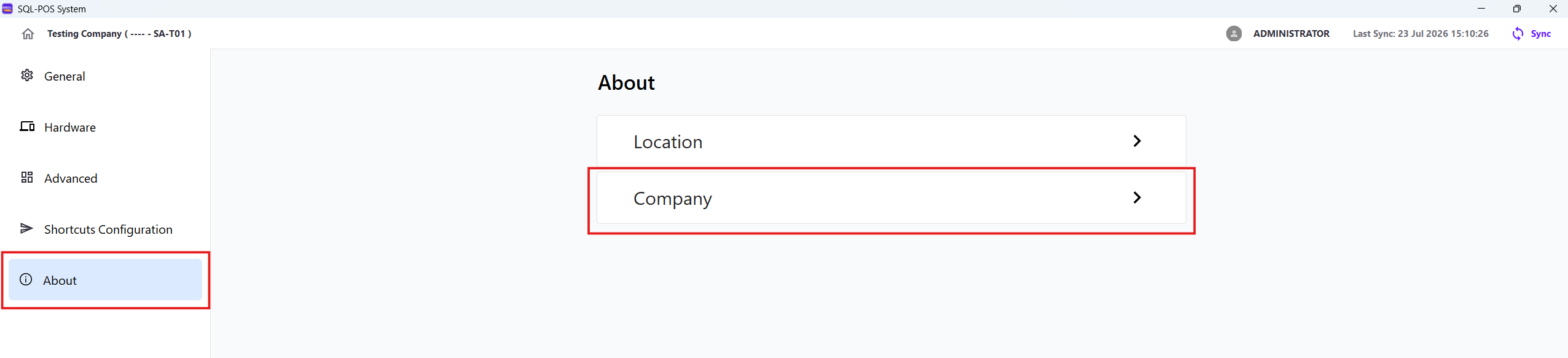

Click About → Company

Section	Details
Company Info	Company logo, company name, old and new registration numbers, phone number, and address lines
